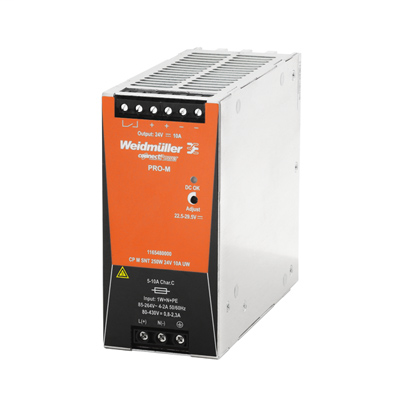

Weidmuller 1165480010

Approvals

• Approvals
  • CE, CULUS, EAC, GERMLLOYD, TUEV
• ROHS
  • Conform
• UL File Number Search
  • E258476

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.5 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 3 for L/N/PE
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Wire connection cross section, flexible (input), max.
  • 2.5 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 26
• Conductor cross-section, flexible , max.
  • 2.5 mm²
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 6 mm²
• Conductor cross-section, rigid , min.
  • 0.5 mm²
• Number of terminals
  • 6 (+,+,-,-,COM,NO)
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm

Dimensions And Weights

• Depth
  • 155 mm
• Depth (inches)
  • 6.102 inch
• Height
  • 130 mm
• Height (inches)
  • 5.118 inch
• Net weight
  • 1,300 g
• Width
  • 60 mm
• Width (inches)
  • 2.362 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety extra-low voltage
  • SELV according to EN 60950, PELV according to EN 60204
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
• Limiting of mains voltage harmonic currents
  • According to EN 61000-3-2
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 30 g in all directions

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• AC failure bridging time @ I
  • > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
• Ambient temperature
  • -25 °C...+70 °C (derating from 60 °C)
• Clip-in foot
  • metal
• Current limiting
  • > 120% IN
• Degree of efficiency
  • 90 % @ 230 V AC / 87 % @ 115 V AC
• Housing version
  • Metal, corrosion resistant
• Indication
  • Dual LED Operational: green LED, Error: red LED
• Max. perm. air humidity (operational)
  • 5 %…95 % RH
• Mounting position, installation notice
  • Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
• MTBF
  • > 500,000 h in accordance with IEC 61709 (SN29500)
• Operating temperature
  • -25 °C...70 °C
• Power factor (approx.)
  • > 0.99 @ 230 V AC / > 0.97 @ 115 V AC
• Protection against over-heating
  • Yes
• Protection against reverse voltages from the load
  • 30…35 V DC
• Protection degree
  • IP20
• Short-circuit protection
  • Yes

Input

• AC current consumption
  • 1.2 A @ 230 V AC / 2.4 A @ 115 V AC
• AC input voltage range
  • 85...264 V AC (derating at 100 V AC)
• Connection system
  • Screw connection
• DC current consumption
  • 0.8 A @ 370 V DC / 2.3 A @ 120 V DC
• DC input voltage range
  • 80…430 V DC
• Frequency range AC
  • 47...63 Hz
• Input fuse (internal)
  • Yes
• Inrush current
  • max. 12 A
• Rated input voltage
  • 100...240 V AC (wide-range input)
• Recommended back-up fuse
  • 4 A / DI, safety fuse10 A, Char. B, circuit breaker3...4 A, Char. C, circuit breaker
• Wire connection method
  • Screw connection

Insulation Coordination

• Insulation voltage
  • 3 kV input/ouput; 2 kV input/earth; 0.5 kV output/earth
• Pollution severity
  • 2
• Protection class
  • I, with PE connection

Output

• Continous output current @ U
  • 12 A @ 45 °C, 10,7 A @ 55 °C, 7,5 A @ 70 °C
• Nominal output current for U
  • 10 A @ 60 °C
• Output current
  • 10A
• Output voltage
  • 22.5...29.5 V (adjustable via potentiometer on front)
• Output voltage type
  • DC
• Overload protection
  • Yes
• Parallel connection option
  • yes, max. 5 (without diode module)
• Rated output voltage
  • 24 V DC ± 1 %
• Reserve capacity @ U
  • 12 A for 1 min, ED = 5 %
• Residual ripple, breaking spikes
  • < 50 mVPP @ 24 V DC, IN, < 2,4 VSS @ 24 V DC, IN @ -40°C
• Wire connection method
  • Screw connection

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E258476

Signalling

• Contact load (NO contact)
  • max. 30 V DC / 0.5 A
• Floating contact
  • Yes
• Relay on/off
  • Output voltage > 21.6 V / < 20.4 V
• Status indicator
  • Green LED, red LED

System Data

• Output current
  • 10A

Temperatures

• Ambient temperature
  • -25 °C...+70 °C (derating from 60 °C)
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
