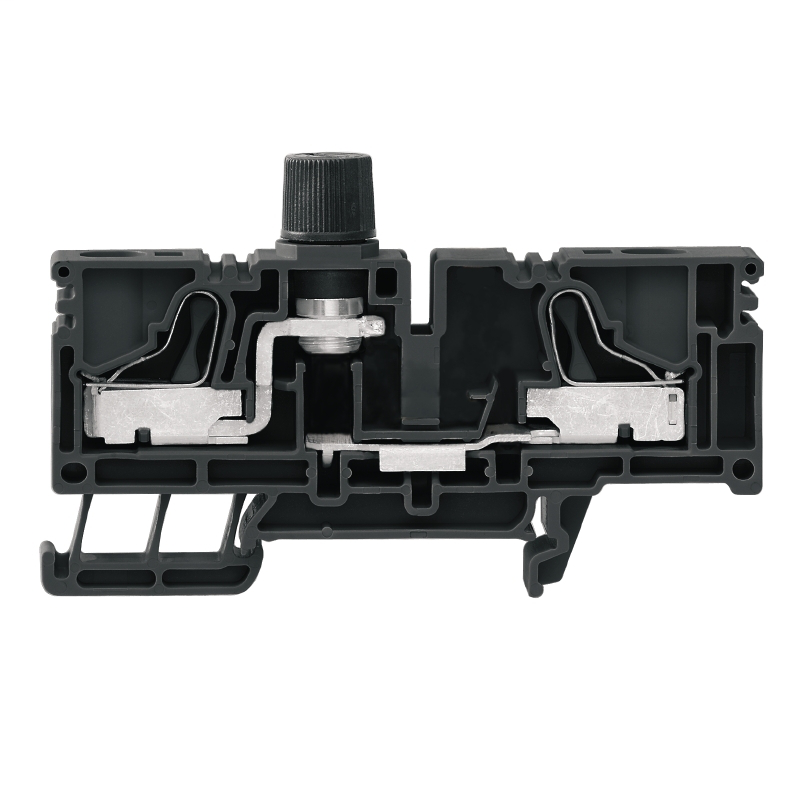

Weidmuller 1165140000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
P-series, Fuse terminal, Rated cross-section: 6 mm², PUSH INPSI 6/10 SW
Weidmuller 1165140000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 10 mm²
- Clamping range, min.
- 1.5 mm²
- Connection direction
- top
- Number of connections
- 2
- Stripping length
- 14 mm
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 8
- Wire connection cross section AWG, min.
- AWG 16
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded, min.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 1.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 1.5 mm²
Dimensions And Weights
- Depth
- 39.6 mm
- Depth (inches)
- 1.559 inch
- Depth including DIN rail
- 40.35 mm
- Height
- 81 mm
- Height (inches)
- 3.189 inch
- Net weight
- 30.48 g
- Width
- 12.2 mm
- Width (inches)
- 0.48 inch
Display Element
- Current
- 6.3 A
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
- Current
- 6.3 A
- Operating voltage, max.
- 250 V
- Permitted power loss for the standard fuse variants
- 2.5 W
Material Data
- Colour
- black
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 10 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 6.3 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 250 V
- Rated voltage to adjoining terminal
- 250 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- PUSH IN connection, Fuse cartridge, for plug-in cross-connector, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
