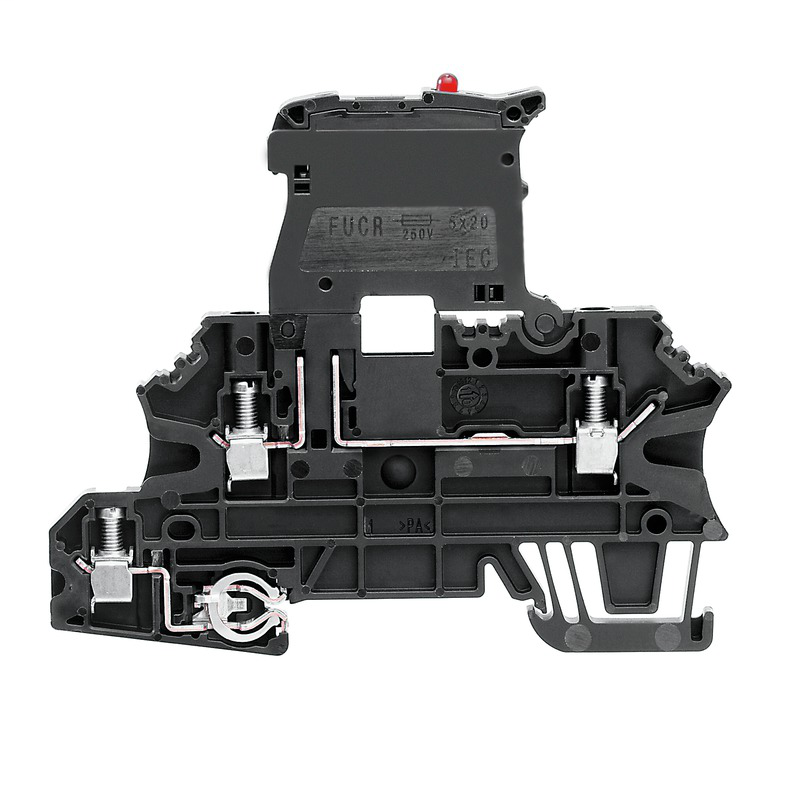

Weidmuller 1163070000

Additional Technical Data

• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE, CSA, cURus, DEMKOATEX, EAC, IECEXULD
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-16
• eClass 9.0
  • 27-14-11-16
• eClass 9.1
  • 27-14-11-16
• ETIM 6.0
  • EC000899
• ETIM 7.0
  • EC000899

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping screw
  • M 3
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 1.5 mm²
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • A3
• Number of connections
  • 3
• Stripping length
  • 10 mm
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire connection cross-section, solid core, max.
  • 4 mm²
• Wire connection cross-section, solid core, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 200039-1057876
• Current size B (CSA)
  • 17 A
• Current size C (CSA)
  • 17 A
• Current size D (CSA)
  • 5 A
• Voltage size B (CSA)
  • 600 V
• Voltage size C (CSA)
  • 600 V
• Voltage size D (CSA)
  • 600 V
• Wire cross section max. (CSA)
  • 12 AWG
• Wire cross section min. (CSA)
  • 26 AWG

Dimensions And Weights

• Depth
  • 74 mm
• Depth (inches)
  • 2.913 inch
• Depth including DIN rail
  • 74.5 mm
• Height
  • 88 mm
• Height (inches)
  • 3.465 inch
• Net weight
  • 20 g
• Width
  • 5.08 mm
• Width (inches)
  • 0.2 inch

Fuse Terminals

• Cartridge fuse
  • G-Si. 5 x 20
• Display
  • Red LED
• Fuse holder (cartridge holder)
  • Pivoting
• Power loss for overload and short-circuit protection for a composite arrangement
  • 1.6 W at 6.3 A @ 23°C
• Power loss for overload and short-circuit protection for an individual arrangement
  • 1.6 W at 6.3 A @ 44°C
• Power loss for short-circuit protection only for a composite arrangement
  • 2.5 W at 6.3 A @ 48°C
• Power loss for short-circuit protection only for an individual arrangement
  • 4 W at 6.3 A @ 61°C

Material Data

• Colour
  • black
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Rating Data

• Current at maximum wires
  • 6.3 A
• Pollution severity
  • 3
• Power loss in accordance with IEC 60947-7-x
  • 0.77 W
• Rated cross-section
  • 2.5 mm²
• Rated current
  • 6.3 A
• Rated impulse withstand voltage
  • 8 kV
• Rated voltage
  • 150 V
• Surge voltage category
  • III
• Volume resistance according to IEC 60947-7-x
  • 1.33 mΩ

Rating Data Iecex/Atex

• Certificate No. (ATEX)
  • DEMKO14ATEX1389U
• Certificate No. (IECEX)
  • IECEXUL14.0097U
• Current (ATEX)
  • 6.3 A
• Current (IECEX)
  • 6.3 A
• Ex 2014/34/EU label
  • II 3 G D
• Marking EN 60079-7
  • Ex ec II C Gc
• Wire cross section max. (ATEX)
  • 4 mm²
• Wire cross section max. (IECEX)
  • 4 mm²

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Number of levels
  • 2
• Rail
  • TS 35
• Version
  • Screw connection, Fuse isolator, With PE connection, for plug-in cross-connector, One end without connector

Temperatures

• Continuous operating temp., max.
  • 120 °C
• Continuous operating temp., min.
  • -50 °C
• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (cURus)
  • E60693
• Conductor size Factory wiring max. (cURus)
  • 12 AWG
• Conductor size Factory wiring min. (cURus)
  • 26 AWG
• Conductor size Field wiring max. (cURus)
  • 12 AWG
• Conductor size Field wiring min. (cURus)
  • 26 AWG
• Current size B (cURus)
  • 17 A
• Current size C (cURus)
  • 17 A
• Current size D (cURus)
  • 5 A
• Voltage size B (cURus)
  • 600 V
• Voltage size C (cURus)
  • 600 V
• Voltage size D (cURus)
  • 600 V
• Wire cross section max. (cURus)
  • 12 AWG
• Wire cross section min. (cURus)
  • 26 AWG
