Weidmuller 1155870000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

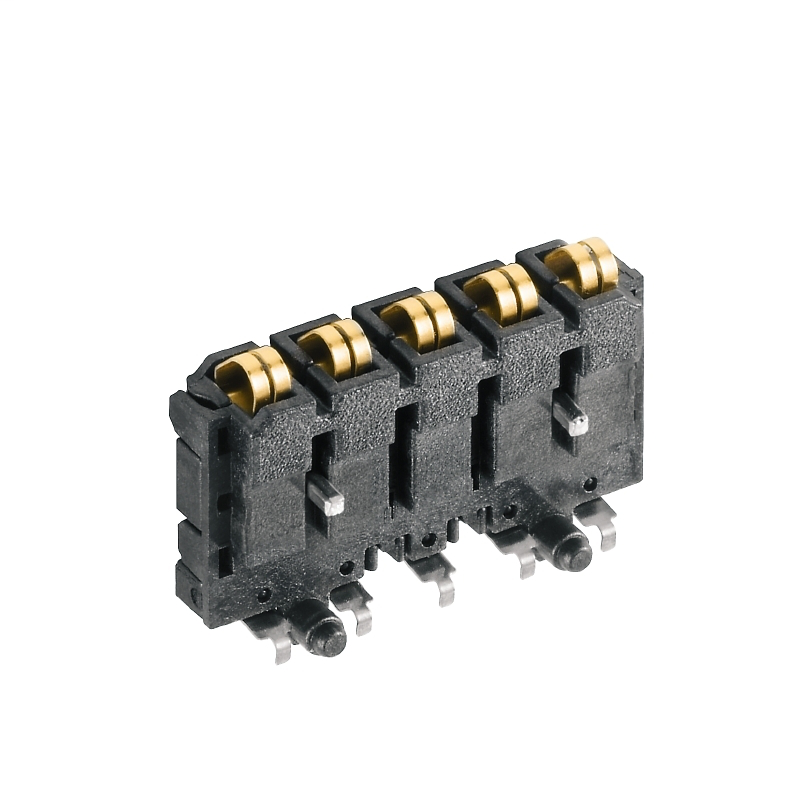

PCB plug-in connector, Bus-contact block for CH20M12-67, Middle solder flange, THT/THR solder connection, Number of poles: 5, 180°, Solder pin length (l): 3.2 mm, Gold-plated, blackSR-SMD 4.50/05/90LFM 3.2AU BK BX
Weidmuller 1155870000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-18-27-92
- eClass 9.0
- 27-18-27-90
- eClass 9.1
- 27-18-27-90
- ETIM 6.0
- EC001031
- ETIM 7.0
- EC001031
Dimensions And Weights
- Height
- 5.9 mm
- Height (inches)
- 0.232 inch
- Length
- 24 mm
- Length (inches)
- 0.945 inch
- Net weight
- 3.13 g
- Width
- 16.3 mm
- Width (inches)
- 0.642 inch
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Contact surface
- Gold-plated
- Insulating material
- LCP
- Insulating material group
- IIIa
- Insulation strength
- ≥ 108 Ω
- Max. relative humidity during storage
- 80 %
- Moisture Level (MSL)
- 1
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 100 °C
- Temperature range, installation, min.
- -30 °C
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
System Specifications
- L1 in inches
- 0.787 inch
- L1 in mm
- 20 mm
- Mounting onto the PCB
- THT/THR solder connection
- Number of poles
- 5
- Outgoing elbow
- 180°
- Pin series quantity
- 1
- Pitch in inches (P)
- 0.197 inch
- Pitch in mm (P)
- 5 mm
- Plugging cycles
- 25
- Product family
- OMNIMATE Housing - series CH20M
- Solder pin length (l)
- 3.2 mm
- Solder pin length tolerance
- +0.1 / -0.2 mm
- Type of connection
- Board connection
