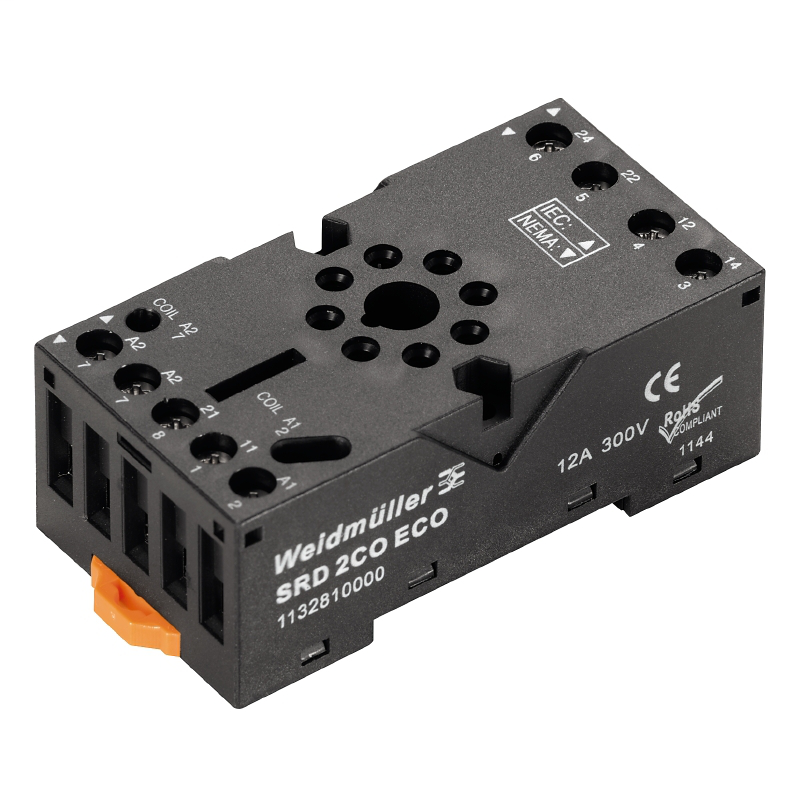

Weidmuller 1132810000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
D-SERIES DRR, Relay bases, Number of contacts: 2 CO contact, Continuous current: 12 A, Screw connectionSRD ECO 2CO
Weidmuller 1132810000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- ROHS
- Conform
- UL File Number Search
- E355547
Classifications
- eClass 10.0
- 27-37-16-03
- eClass 9.0
- 27-37-16-03
- eClass 9.1
- 27-37-16-03
- ETIM 6.0
- EC001456
- ETIM 7.0
- EC001456
Connection Data
- Blade size
- size PH1
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
- Stripping length, rated connection
- 7 mm
- Tightening torque, max.
- 1 Nm
- Tightening torque, min.
- 0.5 Nm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection method
- Screw connection
- Wire cross-section, finely stranded, two clampable wires, max.
- 1 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Contact Data
- Contact type
- 2 CO contact
Dimensions And Weights
- Depth
- 27 mm
- Depth (inches)
- 1.063 inch
- Height
- 76.7 mm
- Height (inches)
- 3.02 inch
- Net weight
- 50 g
- Width
- 38 mm
- Width (inches)
- 1.496 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate No. (cURus)
- E355547
- Standards
- EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508
General Data
- Colour
- black
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 4 mm
- Dielectric strength, Input/Output
- 2.5 kVeff / 1 Min.
- Dielectric strength of neighbouring contacts
- 2.21 kVeff/ 1 min
- Impulse withstand voltage
- 4.8 kV (1.2/50 µs)
- Pollution severity
- 2
- Protection degree
- IP20
- Surge voltage category
- III
Output
- Continuous current
- 12 A
- Max. switching voltage, AC
- 300 V
- Rated switching voltage
- 250 V AC
Product Information
- Product information
- For this socket, a cross connection is not available.For this socket, markers are not available.
Rated Data Ul
- Certificate No. (cURus)
- E355547
Temperatures
- Humidity
- 35...85 % rel. humidity, no condensation
- Operating temperature
- -40 °C...65 °C
- Operating temperature, max.
- 65 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
