Description

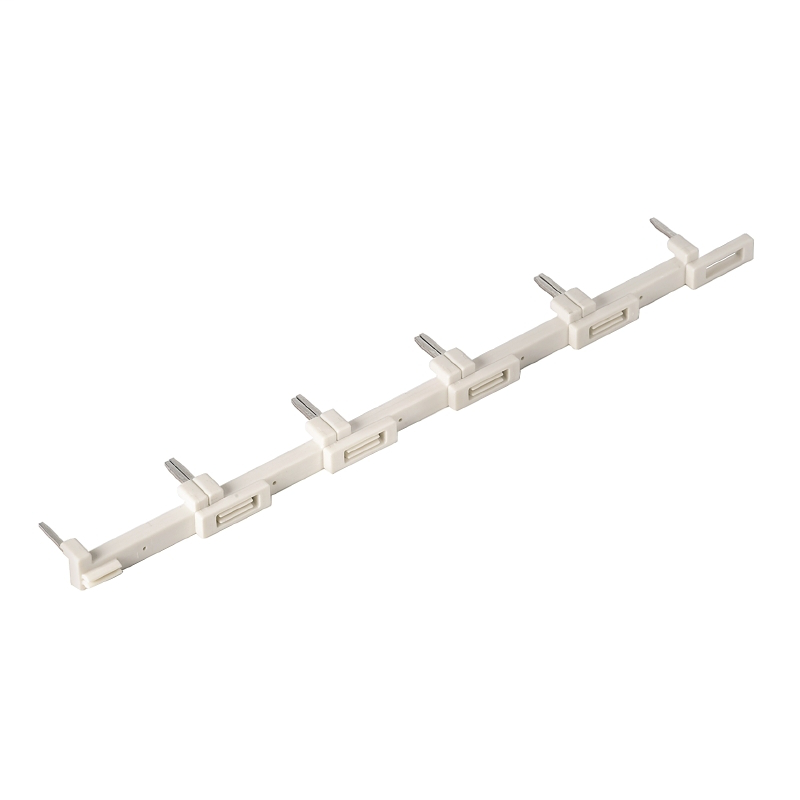

Weidmuller 1132080000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-37-16-92
- eClass 9.1
- 27-37-16-92
- ETIM 6.0
- EC002586
- ETIM 7.0
- EC002586
Connection Data
- Pitch in mm (P)
- 27 mm
Cross-Connection Data
- Colour
- white
- Insulation
- Yes
- Number of cross-connected terminals
- 6
- Pitch in mm (P)
- 27 mm
- Rated current
- 12 A
- Touch-safe protection
- Yes
- Version
- can be cut to length
Dimensions And Weights
- Net weight
- 6.7 g
General Data
- Colour
- white
- Version
- can be cut to length
Temperatures
- Operating temperature
- -45 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -45 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
