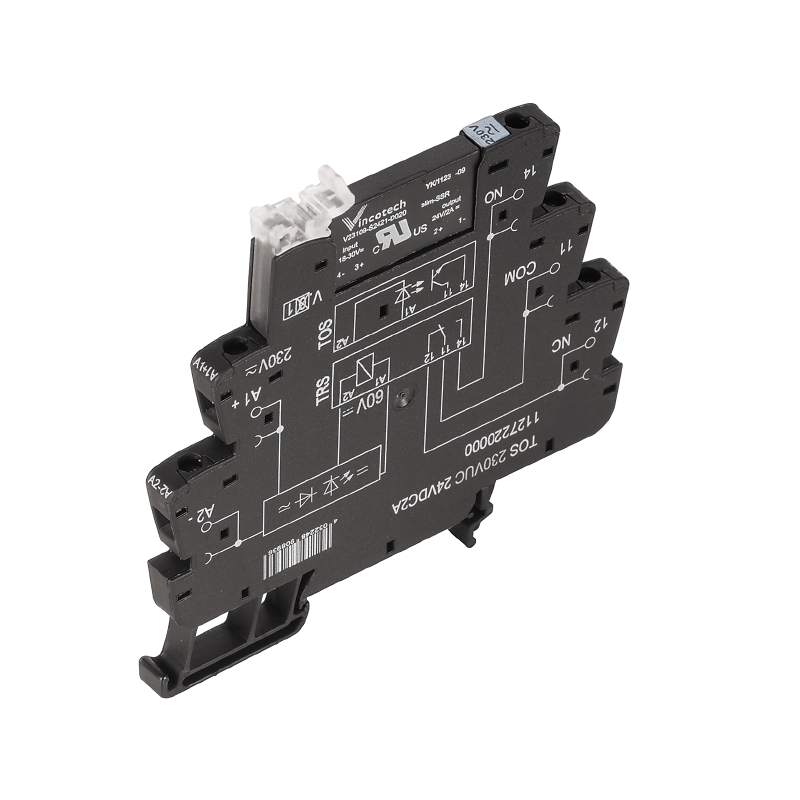

Weidmuller 1127420000

Approvals

• Approvals
  • CE, CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-37-16-04
• eClass 9.0
  • 27-37-16-04
• eClass 9.1
  • 27-37-16-04
• ETIM 6.0
  • EC001504
• ETIM 7.0
  • EC001504

Connection Data

• Blade size
  • size PH0
• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.14 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.25 mm²
• Gauge to IEC 60947-1
  • A1, B1
• Stripping length, rated connection
  • 8 mm
• Tightening torque, max.
  • 0.4 Nm
• Twin wire-end ferrules, max.
  • 1 mm²
• Twin wire-end ferrules, min.
  • 0.5 mm²
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.14 mm²
• Wire connection cross section, finely stranded, two clampable wires, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.25 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, finely stranded, max. (AWG)
  • AWG 14
• Wire cross-section, finely stranded, min. (AWG)
  • AWG 26
• Wire cross-section, finely stranded, two clampable wires, max.
  • 1 mm²
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.14 mm²

Contact Data

• Contact type
  • 1 NO contact (Triac (zero-cross switch))

Control Side

• Coil voltage of the replacement relay
  • 24 V DC
• Coil voltage of the replacement relay deviating from the rated control voltage
  • Yes
• Cut-in / dropout voltage
  • 18 V / 12 V AC14 V / 13 V DC
• Nominal control current
  • 10 mA AC ±20 %, 6 mA DC (±20 %)
• Power rating
  • 154 mW
• Protective circuit
  • Rectifier
• Rated control voltage
  • 24 V UC ±10 %
• Status indicator
  • Green LED

Dimensions And Weights

• Depth
  • 87.8 mm
• Depth (inches)
  • 3.457 inch
• Height
  • 89.6 mm
• Height (inches)
  • 3.528 inch
• Net weight
  • 31.4 g
• Width
  • 6.4 mm
• Width (inches)
  • 0.252 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals / Standards

• Certificate no. (cULus)
  • E141197
• Standards
  • DIN EN 50178

General Data

• Colour
  • black
• Rail
  • TS 35
• UL 94 flammability rating
  • V-0

Insulation Coordination

• Clearance and creepage distances for control side - load side
  • ≥ 5.5 mm
• Dielectric strength for control side - load side
  • 2.5 kVeff
• Dielectric strength to mounting rail
  • 4 kVeff / 1 Min.
• Impulse withstand voltage
  • 6 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Load Side

• Continuous current
  • 1 A
• Inrush current
  • 15 A / 10 ms
• Leakage current
  • < 1.5 mA
• max. switching frequency (AC control voltage)
  • 3 Hz
• max. switching frequency (DC control voltage)
  • 3 Hz
• Min. switching current
  • 20 mA
• Output voltage frequency range
  • 50 / 60 Hz
• Protective circuit, load side
  • RC element
• Rated switching current
  • 1 A
• Rated switching voltage
  • 24...240 V AC
• Short-circuit-proof
  • No
• Switch-off delay
  • < 11 ms
• Switch-on delay
  • < 11 ms
• Voltage drop at max. load
  • ≤ 1.6 V

Probability Of Failure

• MTTF
  • 1,010 Years

Rated Data Ul

• Ambient temperature (operational), max.
  • 60 °C
• Connection cross-section AWG, max.
  • AWG 14
• Connection cross-section AWG, min.
  • AWG 26
• Pollution severity level
  • 2
• Tightening torque, max.
  • 0.4 Nm
• Type of conductor
  • rigid copper conductor, flexible copper conductor

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • -20 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature
  • -40 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -40 °C
