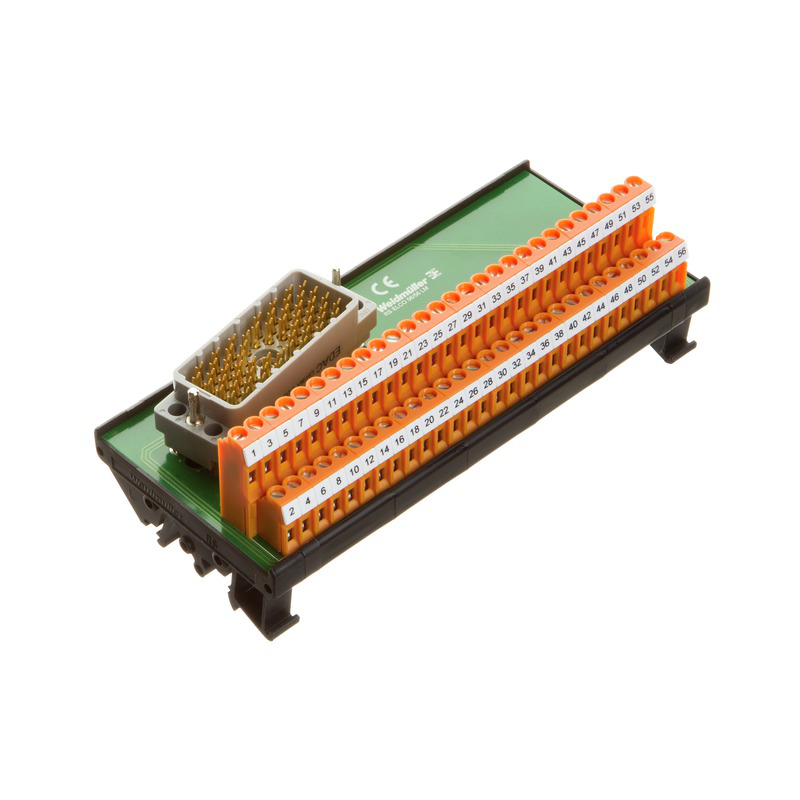

Weidmuller 1126730000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RS ELCO, ELCO plug-in connector, 54, LP2N 5.08mmRS ELCO 56/54RM S
Weidmuller 1126730000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-14-11-52
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data
- Connection (field side)
- LP2N 5.08mm
- Connection on control side
- ELCO plug-in connector
- Connector alignment
- Right
- Contact material (control side)
- Phosphor bronze alloy
- Number of poles (control side)
- 56-pole plug
- Number of poles (field side)
- 54 P
- Polarity hardware codification
- 1
Connection Field
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 60 mm
- Height (inches)
- 2.362 inch
- Length
- 155 mm
- Length (inches)
- 6.102 inch
- Net weight
- 1,145.091 g
- Width
- 70 mm
- Width (inches)
- 2.756 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Insulation test voltage
- 0.8 kVAC
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 2.5 kV
- Rated insulation voltage
- < 150 V AC
- Surge voltage category
- II
Rating Data
- Rated current per connection
- 1.5 A
- Rated voltage
- 150 V AC / 200 V DC
- Total operating current
- 81 A
Temperatures
- Operating temperature
- -25...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
