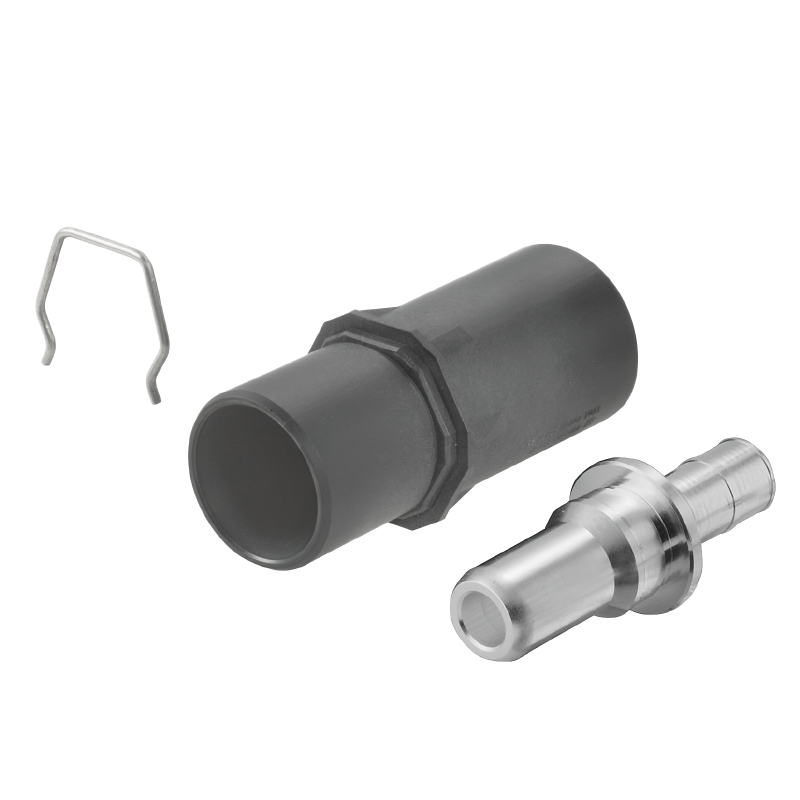

Weidmuller 1120590000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HDC insert, Pin, 3000 V, 550 A, Crimp connection, Size: 550HDC HP 550 M 240
Weidmuller 1120590000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-04
- eClass 9.0
- 27-44-02-04
- eClass 9.1
- 27-44-02-04
- ETIM 6.0
- EC000796
- ETIM 7.0
- EC000796
- UNSPSC
- 30-21-18-01
Connection Data
- Conductor cross-section, max.
- 240 mm²
- Conductor cross-section, min.
- 240 mm²
- Wire connection cross section AWG, max.
- kcmil 500
Design
- Product family
- HDC insert
- Product type
- Crimp contact
- Type
- Pin
- Type of connection
- Crimp connection
Dimensions And Weights
- Diameter
- 43 mm
- Length
- 91 mm
- Length (inches)
- 3.583 inch
- Net weight
- 234 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Colour
- black
- Contact diameter, male Ø
- 18 mm
- Material
- Copper alloy
- Production methods
- turned
- Series
- HighPower
- Stripping length, rated connection
- 30 mm
- Surface finish
- Silver passivated
- Type
- Pin
- Type of connection
- Crimp connection
- Version insert
- HighPower 550 A
- Volume resistance
- ≤ 0.1 mΩ
General Descriptions
- Size
- 550
Material
- Colour
- black
- Insulating material
- Polyamide with fibre optic
- Material
- Copper alloy
- UL 94 flammability rating
- V-0
Power Contact
- Rated current (DIN EN 61984), power contact
- 550 A
- Rated impulse voltage (DIN EN 61984), power contact
- 15 kV
- Rated voltage (DIN EN 61984), power contact
- 3,000 V
- Stripping length, performance contact
- 30 mm
- Type of connection, power contact
- Crimp connection
Temperatures
- Limit temperature
- -50 °C ... 120 °C
