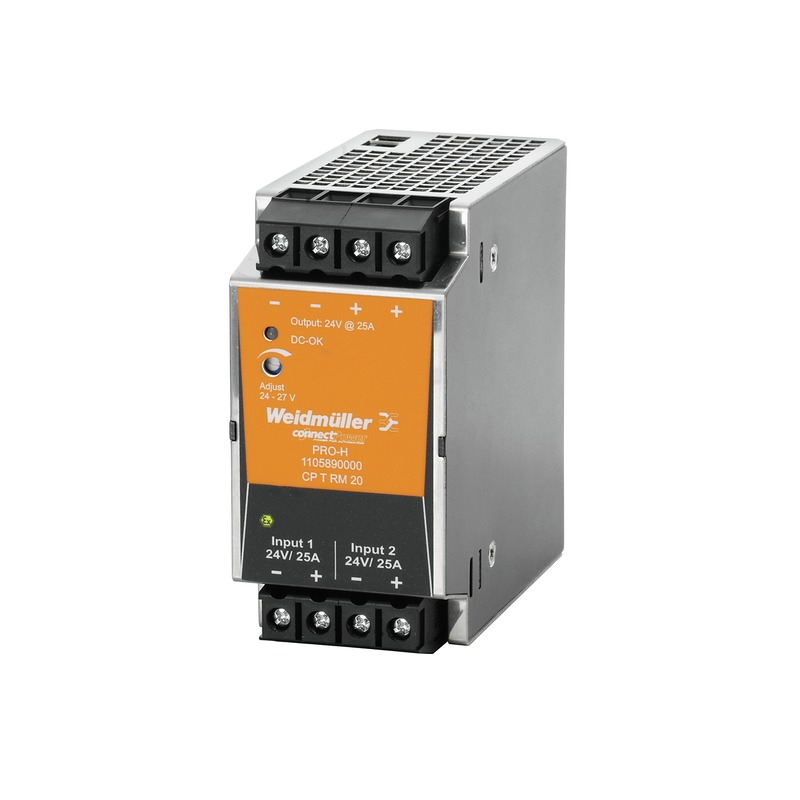

Weidmuller 1105890000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1105890000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CURUS
- EAC
- CSA
- BVATEX
- CE
- Certificate No. (CSA)
- 246286-2148800
- Certificate No. (cURus)
- E258476
- Institute (CSA)
- icon
- Institute (cURus)
- icon
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 6.2
- 27-04-90-04
- eClass 7.1
- 27-04-90-04
- eClass 8.1
- 27-04-90-04
- eClass 9.0
- 27-04-07-03
- eClass 9.1
- 27-04-92-90
- ETIM 4.0
- EC002541
- ETIM 5.0
- EC002541
- ETIM 6.0
- EC002850
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 10
- Conductor cross-section, AWG/kcmil , min.
- 18
- Conductor cross-section, flexible , min.
- 1 mm²
- Conductor cross-section, rigid , max.
- 4 mm²
- Conductor cross-section, rigid , min.
- 1 mm²
- Number of terminals
- 4 (++--)
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Wire connection cross section, flexible (input), max.
- 4 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 10
- Conductor cross-section, AWG/kcmil , min.
- 12
- Conductor cross-section, flexible , max.
- 4 mm²
- Conductor cross-section, flexible , min.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 4 mm²
- Conductor cross-section, rigid , min.
- 2.5 mm²
- Connection system
- Screw connection
- Number of terminals
- 4 (++ / --)
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
Connection Data (Signal)
- Wire connection method
- Screw connection
- Wire cross-section, AWG/kcmil , max.
- 12
- Wire cross-section, AWG/kcmil , min.
- 32
- Wire cross-section, solid , max.
- 2.5 mm²
- Wire cross-section, solid , min.
- 0.2 mm²
Dimensions And Weights
- Depth
- 110 mm
- Depth (inches)
- 4.331 inch
- Height
- 110 mm
- Height (inches)
- 4.331 inch
- Net weight
- 494.8 g
- Width
- 54 mm
- Width (inches)
- 2.126 inch
General Data
- Housing version
- Metal, corrosion resistant
- Humidity
- 0...95 % (no condensation)
- Operating temperature
- -25 °C...70 °C
- Protection degree
- IP20
General Ordering Data
- Alternative product
- 2486100000
- Available until
- 2018-06-30
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4032248881369
- Order No.
- 1105890000
- Qty.
- 1 pc(s).
- Type
- CP T RM 20
- Version
- Power supply, switch-mode power supply unit
Input
- Rated input voltage
- 24 V DC
Insulation Coordination
- Class of protection
- I, with PE connection
- Pollution severity
- 2
Output
- Conductor cross-section, AWG/kcmil , max.
- 10
- Conductor cross-section, AWG/kcmil , min.
- 12
- Conductor cross-section, flexible , max.
- 4 mm²
- Conductor cross-section, flexible , min.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 4 mm²
- Conductor cross-section, rigid , min.
- 2.5 mm²
- Connection system
- Screw connection
- Screw connection
- Number of terminals
- 4 (++ / --)
- Output voltage
- 24...28 V (adjustable via potentiometer on front)
- Output voltage type
- DC
- Rated (nominal) output current @ U
- 25 A @ 40 °C
- Rated output voltage
- 24 V DC ± 1 %
- Residual ripple, breaking spikes
- 100 mV
- @ 24 V DC, I
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
Temperatures
- Humidity
- 0...95 % (no condensation)
- Operating temperature
- -25 °C...70 °C
- Storage temperature
- -25 °C...85 °C
