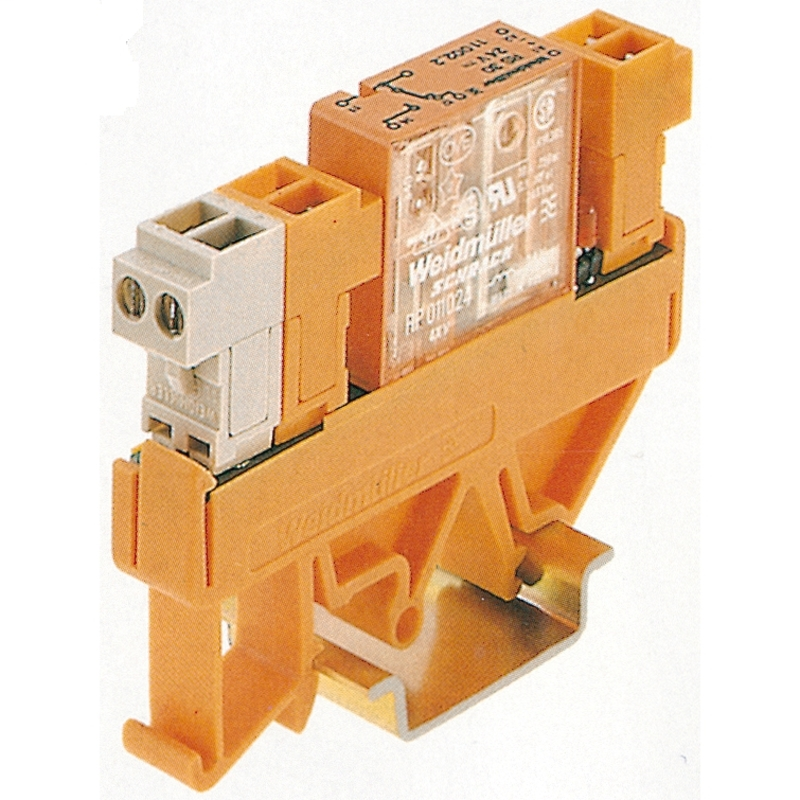

Weidmuller 1100760000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1100760000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- MARITREG
- CSA
- CE
- ROHS
- Conform
Classifications
- eClass 5.1
- 27-37-16-01
- eClass 6.2
- 27-37-16-01
- eClass 7.1
- 27-37-16-01
- eClass 8.1
- 27-37-16-01
- eClass 9.0
- 27-37-16-01
- eClass 9.1
- 27-37-16-01
- ETIM 3.0
- EC001437
- ETIM 4.0
- EC001437
- ETIM 5.0
- EC001437
- ETIM 6.0
- EC001437
- UNSPSC
- 30-21-19-17
Connection Data
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, rated connection, max.
- 4 mm²
- Clamping range, rated connection, min.
- 0.5 mm²
- Stripping length, rated connection
- 8 mm
- Wire connection method
- Screw connection
Contact Data
- Contact type
- 1 CO contact (AgNi 0.15 gold flashed)
- Electrical service life, DC coil
- > 5x10
- switching cycles
- Electrical service life of AC coil
- Switching cycles
- > 7x10
- Mechanical service life
- switching cycles
- 20 x 10
Dimensions And Weights
- Depth
- 56 mm
- Depth (inches)
- 2.205 inch
- Height
- 74 mm
- Height (inches)
- 2.913 inch
- Net weight
- 34.7 g
- Width
- 11.2 mm
- Width (inches)
- 0.441 inch
Further Details Of Approvals / Standards
- Certificate No. (CSA)
- 082859-C-000
- Standards
- DIN EN 50178
General Data
- Mechanical switch position indicator
- No
- Mounting rail
- TS 32, TS 35
- Test button
- No
- Version
- soldered relay
General Ordering Data
- Alternative product
- 1122830000
- Available until
- 2017-12-15
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4008190117832
- Order No.
- 1100760000
- Qty.
- 10 pc(s).
- Type
- RS 30 115VUC BL/SL 1U
- Version
- RS-SERIES, Relay module, No. of contacts: 1 CO contact AgNi 0.15 gold flashed, Rated control voltage: 115 V AC, Continuous current: 5 A, Screw connection
Input
- Power rating
- 0.8 VA
- Pull-in/drop-out current, typ.
- 4.3 mA / 2 mA AC
- Pull-in/drop-out voltage, typ.
- 98 V AC
- Rated control voltage
- 115 V AC
- Rated current AC
- 6.1 mA
- Status indicator
- No
Insulation Coordination
- Creepage and clearance distance input – output
- > 3 mm
- Impulse withstand voltage
- 4 kV
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- AC switching capacity (resistive), max.
- 2000 VA
- Continuous current
- 5 A
- Duration of Bounce
- ≤ 3 ms
- Inrush current
- 8 A
- Max. switching frequency at rated load
- 0.1 Hz
- Max. switching voltage, AC
- 250 V
- Min. switching power
- 250 mW
- Rated switching voltage
- 250 V AC
- Switch-off delay
- ≤ 8 ms
- Switch-on delay
- < 9 ms
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature
- -25 °C...40 °C
- Storage temperature
- -40 °C...60 °C
