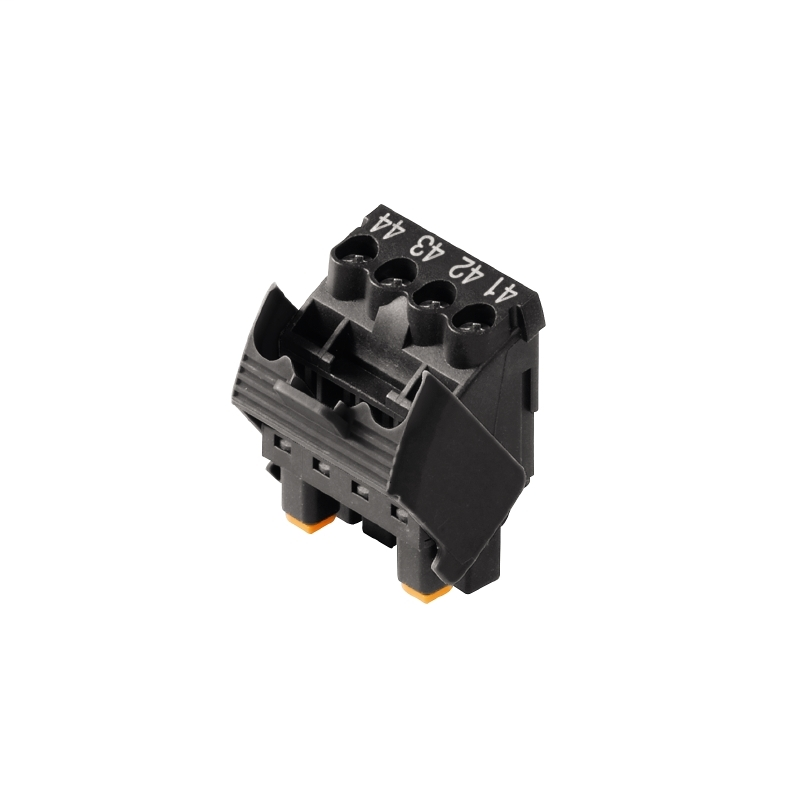

Weidmuller 1086410000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1086410000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CURUS
- EAC
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 6.2
- 27-26-07-04
- eClass 7.1
- 27-44-04-02
- eClass 8.1
- 27-44-04-02
- eClass 9.0
- 27-44-04-02
- eClass 9.1
- 27-44-04-02
- ETIM 4.0
- EC002637
- ETIM 5.0
- EC002637
- ETIM 6.0
- EC002637
Connection Data
- Clamping range, rated connection, max.
- 3.31 mm²
- Clamping range, rated connection, min.
- 0.13 mm²
- Pitch in mm (P)
- 5 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.4 Nm
- Type of connection
- Clamping yoke connection
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection method
- Clamping yoke connection
Dimensions And Weights
- Height
- 29 mm
- Height (inches)
- 1.142 inch
- Length
- 14.6 mm
- Length (inches)
- 0.575 inch
- Net weight
- 9.4 g
- Width
- 22.4 mm
- Width (inches)
- 0.882 inch
General Ordering Data
- GTIN (EAN)
- 4032248852864
- Order No.
- 1086410000
- Packaging
- Box
- Product data
- IEC: 400 V / 0.2 - 2.5 mm²
- UL: 300 V / 10 A / AWG 26 - AWG 12
- Qty.
- 78 pc(s).
- Type
- BHZ 5.00/04/90LH BK/BL PRT 51
- Version
- PCB plug-in connector, female plug, 5.00 mm, No. of poles: 4, 90°, Clamping yoke connection, Clamping range, rated connection, max.: 3.31 mm², Box
Temperatures
- Temperature range, installation, max.
- 120 °C
- Temperature range, installation, min.
- -25 °C
