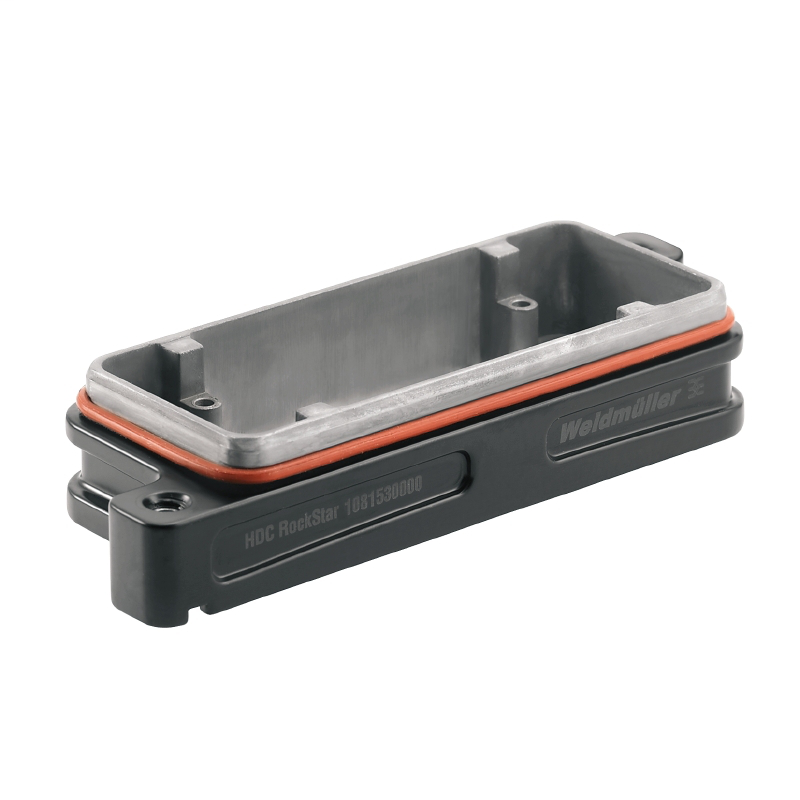

Weidmuller 1081530000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1081530000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, DNV GL
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
- UNSPSC
- 30-21-18-01
Design
- Product family
- HDC enclosures
- Product type
- Enclosures
- Type
- Bulkhead (feed-through)
Dimensions
- Height of housing B
- 21 mm
- Hole pitch length A2
- 103 mm
- Total length housing
- 164 mm
Dimensions And Weights
- Depth
- 164 mm
- Depth (inches)
- 6.457 inch
- Height
- 29.5 mm
- Height (inches)
- 1.161 inch
- Mounting dimension - height
- 32 mm
- Mounting dimension - width
- 103 mm
- Net weight
- 180 g
- Width
- 58 mm
- Width (inches)
- 2.283 inch
General Data
- EMC housings
- Yes
- Housing main material
- diecast aluminium
- Protection degree
- IP68, IP69K
- Surface finish
- Powder coating
General Descriptions
- Protection degree
- IP68, IP69K
- Size
- 6
Material
- Colour
- black
Temperatures
- Limit temperature
- -50 °C ... 125 °C
Version
- Clamp version
- Clamping yoke connection
- Design
- Standard
- Design of housing
- Open base
- Design of locking system
- Clamping yoke connection
- Sealing
- Silicone rubber
- Size
- 6
- Suitable for ModuPlug
- Yes
- Top part/bottom part/lid
- lower part
- Type
- Bulkhead (feed-through)
