Description

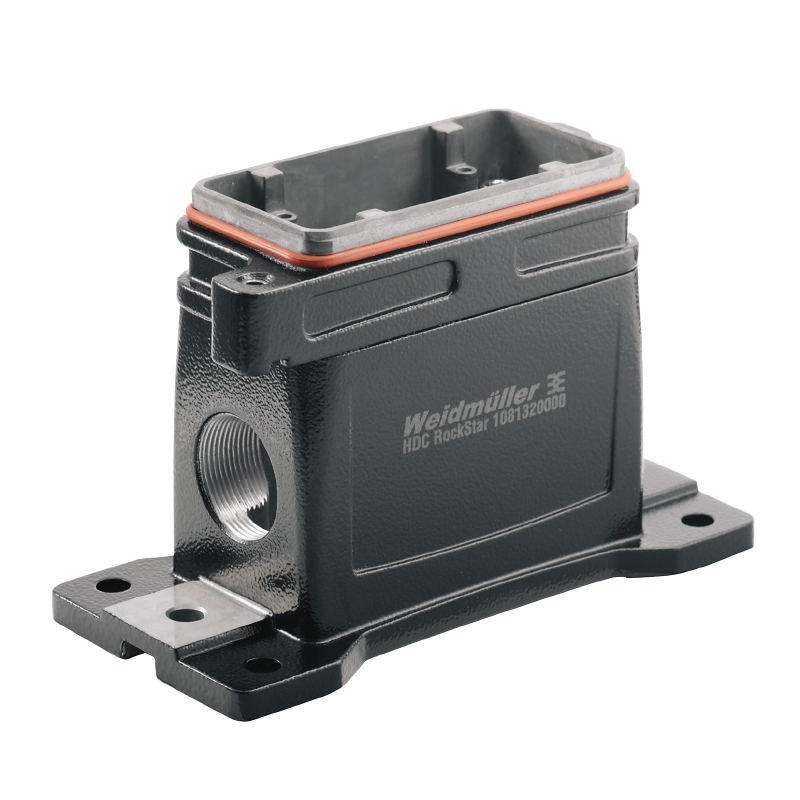

HDC enclosures, Size: 8, Protection degree: IP68, IP69K, Closed base, Clamping yoke connection, Standard, Size of cable entries: PG 36HDC IP68 24B SS 2PG36
Weidmuller 1081440000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, DNV GL
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
- UNSPSC
- 30-21-18-01
Design
- Cable entry
- w. threading
- Product family
- HDC enclosures
- Product type
- Enclosures
- Type
- Base housing
Dimensions
- Cable entry
- w. threading
- Height of housing B
- 111.5 mm
- Hole pitch length A2
- 187 mm
- Total length housing
- 216 mm
Dimensions And Weights
- Depth
- 216 mm
- Depth (inches)
- 8.504 inch
- Height
- 111.5 mm
- Height (inches)
- 4.39 inch
- Mounting dimension - height
- 60 mm
- Mounting dimension - width
- 187 mm
- Net weight
- 1,136 g
- Width
- 80 mm
- Width (inches)
- 3.15 inch
General Data
- EMC housings
- Yes
- Housing main material
- diecast aluminium
- Protection degree
- IP68, IP69K
- Surface finish
- Powder coating
General Descriptions
- Protection degree
- IP68, IP69K
- Size
- 8
- Size of cable entries
- PG 36
Material
- Colour
- black
Temperatures
- Limit temperature
- -50 °C ... 125 °C
Version
- Cable entry
- w. threading
- Clamp version
- Clamping yoke connection
- Design
- Standard
- Design of housing
- Closed base
- Design of locking system
- Clamping yoke connection
- Internal thread
- PG 36
- Number of cable entry on top
- 0
- Number of cable entry sideways
- 2
- Sealing
- Silicone rubber
- Size
- 8
- Size of cable entries
- PG 36
- Suitable for ModuPlug
- Yes
- Top part/bottom part/lid
- lower part
- Type
- Base housing
