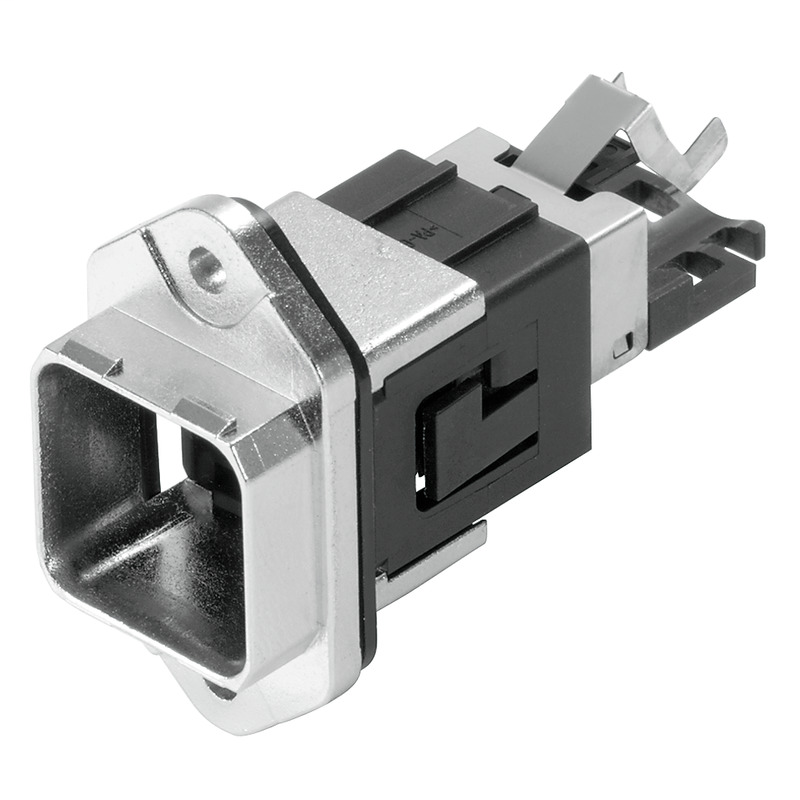

Weidmuller 1072900000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1072900000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-09-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Net weight
- 55.47 g
Electrical Properties
- Rated current
- 3 A per contact
- Volume resistance
- < 10 mΩ
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Category
- Cat.5 (ISO/IEC 11801)
- Connection 1
- Hybrid (Q10)
- Connection 2
- Crimp
- Contact surface
- Gold over nickel
- Housing main material
- Zinc diecast
- Plugging cycles
- 500
- Protection degree
- IP67
- Seal material
- EPDM
- Sheath diameter, max.
- 10 mm
- Sheath diameter, min.
- 5 mm
- Shielding
- 360° all-round enclosure
- Type of mounting
- 2 screws
- Wire connection cross section, finely stranded, max.
- 0.75 mm²
- Wire connection cross-section, finely stranded, min.
- 0.08 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 20
- Wire cross-section, finely stranded, min. (AWG)
- AWG 27
Standards
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-3-119 CDV, IEC 61076-3-117 Var. 14
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
