Weidmuller 1068880000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

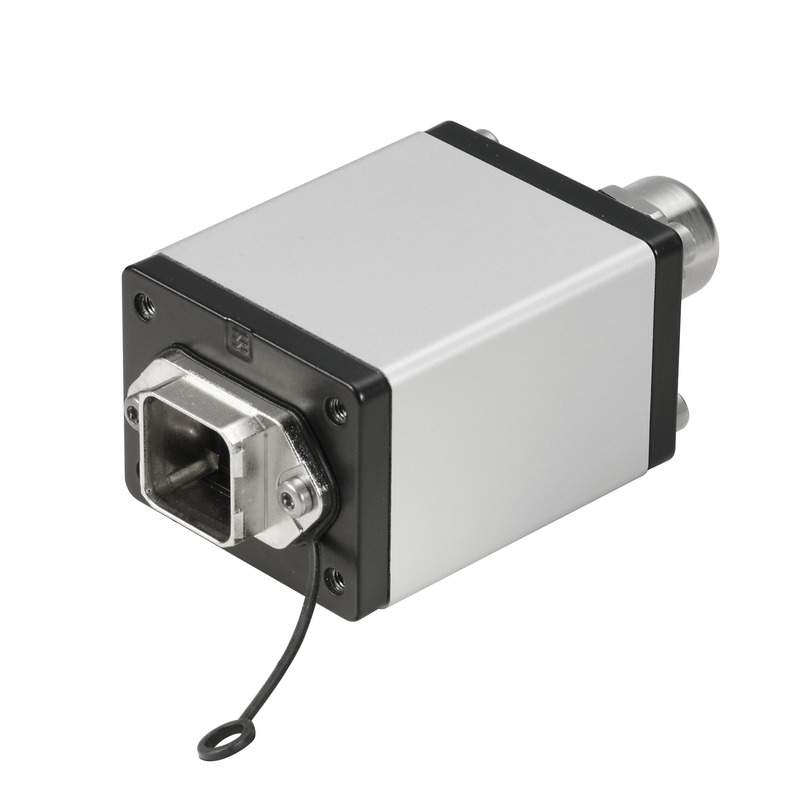

Junction box, FreeCon, RJ45 module, IP65IE-CD-V14MRJ-FJ
Weidmuller 1068880000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-03-92
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
Dimensions And Weights
- Net weight
- 361 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Housing main material
- Aluminium profile, Cover: die-cast zinc, nickel plated
- Protection degree
- IP65
- Wiring
- PROFINET
Standards
- Application-specific communication cable facilities
- PROFINET installation instructions
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-3-117 Var. 14, IEC 60603-7-5
- Generic communication cable facilities
- DIN EN 61918 Draft 02.2007, ISO / IEC 24702:2006, ISO / IEC 11801:2002, ANSI / TIA / EIA-568-B.2-10, EN 50173-1:2007
- IP protection classes
- IEC 60529
- UL standard for communication accessories
- UL 1863
Technical Data Rj45 Module
- Category (RJ45 module)
- Cat.5 (ISO/IEC 11801)
- Colour (RJ45 module)
- silver
- Connection 1 (RJ45 module)
- IDC
- Connection 2 (RJ45 module)
- RJ45
- Contact resistance (RJ45 module)
- ≤ 20 mΩ
- Contact surface (RJ45 module)
- Gold over nickel
- Current capacity (RJ45 module)
- 1 A
- Dielectric strength, contact - contact (RJ45 module)
- ≤ 1000 V DC
- Dielectric strength, contact - shielding (RJ45 module)
- ≤ 1500 V DC
- Housing base material (RJ45 module)
- Zinc diecast, nickel-plated
- Insulation resistance (RJ45 module)
- > 500 MΩ
- Plugging cycles (RJ45 module)
- 750
- Plugging force (RJ45 module)
- ≤ 30 N
- Shielding (RJ45 module)
- 360° shield contact
- Wire cross-section, finely stranded, max. (AWG)
- AWG 22
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wiring
- PROFINET
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
