Description

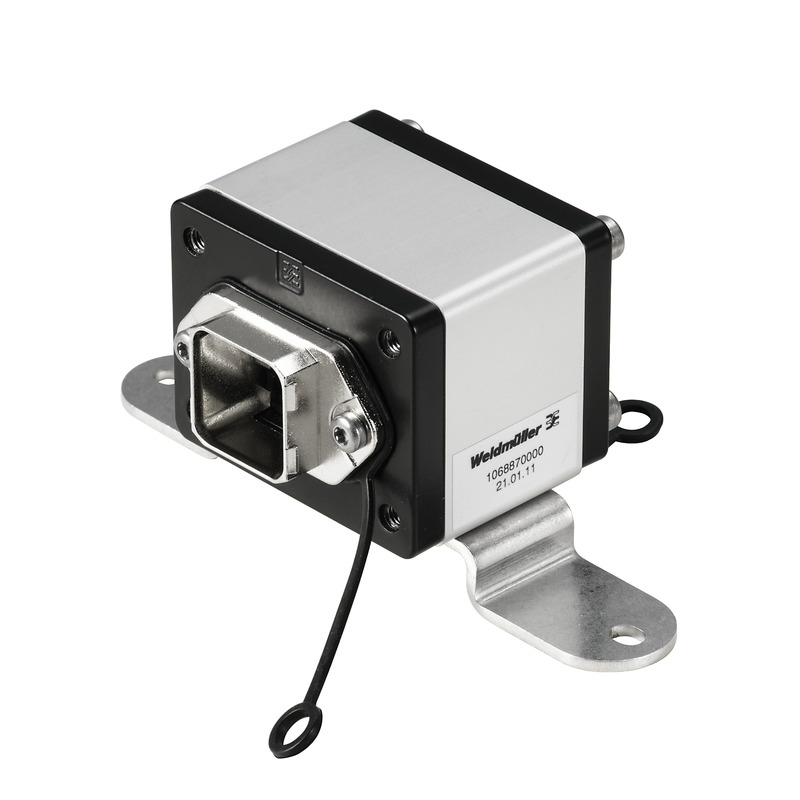

Weidmuller 1068870000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-03-92
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
Dimensions And Weights
- Net weight
- 286.47 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Housing main material
- Aluminium profile, Cover: die-cast zinc, nickel plated
- Protection degree
- IP65
- UL 94 flammability rating
- V-0
Standards
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-3-117 Var. 14, IEC 60603-7-5
Technical Data Rj45 Coupling
- Category (RJ45 coupling)
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Contact resistance (RJ45 coupling)
- ≤ 20 mΩ
- Contact surface (RJ45 coupling)
- Gold over nickel
- Current carrying capability (RJ45 coupling)
- 1 A
- Dielectric strength, contact – contact, min. (RJ45 coupling)
- ≥ 1000 V DC
- Dielectric strength, contact – shielding, max. (RJ45 coupling)
- ≥ 1500 V DC
- Housing base material (RJ45 coupling)
- Zinc diecast, PA 66
- Insulation resistance (RJ45 coupling)
- > 500 MΩ
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
