Weidmuller 1068830000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

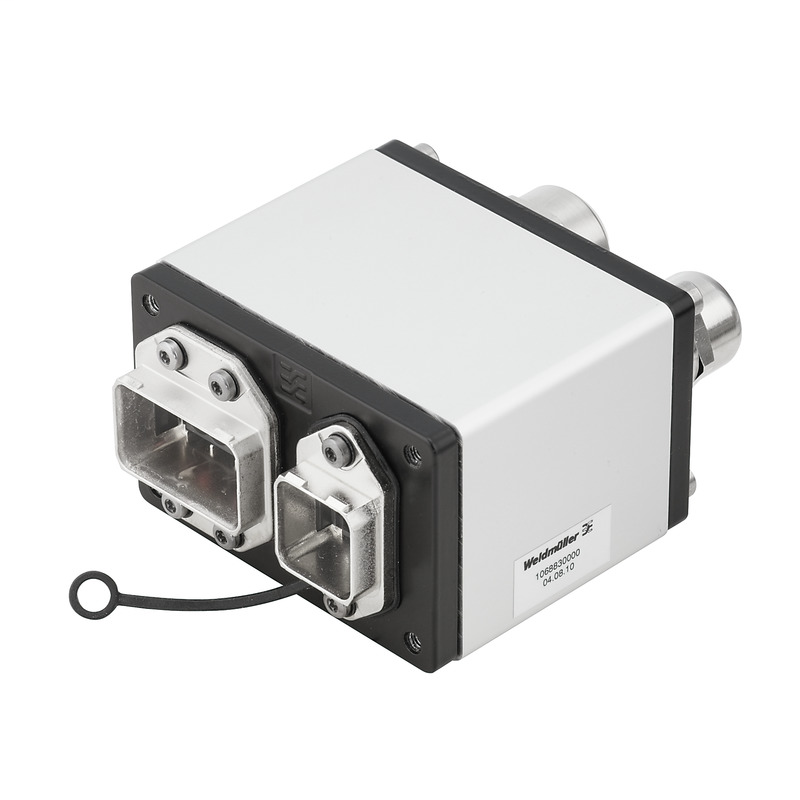

Junction box, FreeCon, RJ45 module, Supply, IP65IE-CD-V14MRJ/VAPM24V-FJ
Weidmuller 1068830000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-03-92
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
Dimensions And Weights
- Height
- 52 mm
- Height (inches)
- 2.047 inch
- Length
- 100 mm
- Length (inches)
- 3.937 inch
- Net weight
- 474 g
- Weight
- 471 g
- Width
- 80 mm
- Width (inches)
- 3.15 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Housing main material
- Aluminium profile, Cover: die-cast zinc, nickel plated
- Protection degree
- IP65
- UL 94 flammability rating
- V-0
- Weight
- 471 g
- Wiring
- PROFINET
Standards
- Application-specific communication cable facilities
- PROFINET installation instructions
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-3-117 Var. 14, IEC 60603-7-5
- Generic communication cable facilities
- DIN EN 61918 Draft 02.2007, ISO / IEC 24702:2006, ISO / IEC 11801:2002, ANSI / TIA / EIA-568-B.2-10, EN 50173-1:2007
- IP protection classes
- IEC 60529
- UL standard for communication accessories
- UL 1863
Technical Data Rj45 Module
- Category (RJ45 module)
- Cat.5 (ISO/IEC 11801)
- Colour (RJ45 module)
- silver
- Connection 1 (RJ45 module)
- IDC
- Connection 2 (RJ45 module)
- RJ45
- Contact resistance (RJ45 module)
- ≤ 20 mΩ
- Contact surface (RJ45 module)
- Gold over nickel
- Current capacity (RJ45 module)
- 1 A
- Dielectric strength, contact - contact (RJ45 module)
- ≤ 1000 V DC
- Dielectric strength, contact - shielding (RJ45 module)
- ≤ 1500 V DC
- Housing base material (RJ45 module)
- Zinc diecast, nickel-plated
- Insulation resistance (RJ45 module)
- > 500 MΩ
- Plugging cycles (RJ45 module)
- 750
- Plugging force (RJ45 module)
- ≤ 30 N
- Shielding (RJ45 module)
- 360° shield contact
- Wire cross-section, finely stranded, max. (AWG)
- AWG 22
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wiring
- PROFINET
Technical Specifications For Power Connector
- Cable seal material (power connector)
- TPE
- Colour (power connector)
- Silver grey
- Connection 2 (power connector)
- Tension clamp
- Connection cross-section AWG, max. (power connector)
- 13
- Connection cross-section AWG, min. (power connector)
- 18
- Contact material (power connector)
- Copper alloy
- Contact surface (power connector)
- Gold over nickel
- Current capacity at 50 °C (power connector)
- 16 A
- Housing base material (power connector)
- Zinc diecast, nickel-plated
- Interlock type (power connector)
- Push Pull
- Nominal voltage (power connector)
- 24 V
- Plugging cycles (power connector)
- ≤ 100
- Pollution degree (power connector)
- 2
- Seal material (power connector)
- NBR
- Sheath diameter, max. (power connector)
- 12 mm
- Sheath diameter, min. (power connector)
- 6 mm
- Wire connection cross section, finely stranded, max. (power connector)
- 2.5 mm²
- Wire connection cross section, finely stranded, min. (power connector)
- 0.75 mm²
- Wire connection cross section, stranded, rated connection, max. (power connector)
- 2.5 mm²
- Wire connection cross section, stranded, rated connection, min. (power connector)
- 0.75 mm²
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
