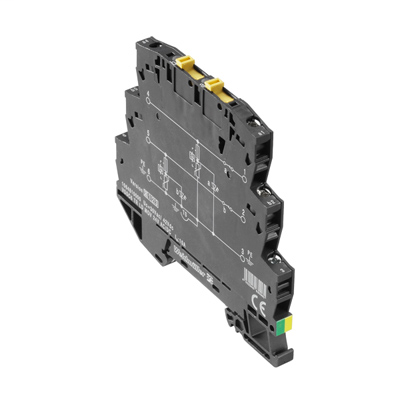

Weidmuller 1064810000

Approvals

• Approvals
  • CE, CSAEX, EAC, FUSAFETY, OEVE, UL
• ROHS
  • Conform
• UL File Number Search
  • E311081

Classifications

• eClass 10.0
  • 27-13-08-07
• eClass 9.0
  • 27-13-08-07
• eClass 9.1
  • 27-13-08-07
• ETIM 6.0
  • EC000943
• ETIM 7.0
  • EC000943
• UNSPSC
  • 30-21-18-11

Connection Data

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 4 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire cross-section, solid, max.
  • 6 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Csa Protection Data

• Gas group C
  • IIB
• Gas group D
  • IIA
• Gas groups A, B
  • IIC
• Input current, max. I
  • 12 A
• Input voltage, max. U
  • 42 V
• Internal capacity, max. C
  • 10 nF
• Internal inductance, max. L
  • 0 µH

Dimensions And Weights

• Depth
  • 81 mm
• Depth (inches)
  • 3.189 inch
• Height
  • 88.5 mm
• Height (inches)
  • 3.484 inch
• Net weight
  • 53.125 g
• Width
  • 6.2 mm
• Width (inches)
  • 0.244 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals

• GOST certificate
  • GOST-Zertifikat

General Data

• Colour
  • black
• Design
  • Terminal
• Isolating function
  • Yes
• Optical function display
  • Yes
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Measurement - Monitoring - Setting
• Testing option
  • Functional screw with test plug receptacle, connections 1, 2, 4, 5
• UL 94 flammability rating
  • V-0
• Version
  • Surge protection for measurement and control

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Probability Of Failure

• MTTF
  • 3,085 years
• PFH in 1*10
  • 0.9
• SFF
  • 97.57 %
• SIL in compliance with IEC 61508
  • 3
• SIL PAPER
  • SIL Paper
• λges
  • 37

Rated Data Iec / En

• Capacitance
  • 4.6 nF
• Discharge current I
  • 0.5 kA
• Discharge current, max. (8/20 µs)
  • 2 kA
• Max. continuous voltage, Uc (AC)
  • 30 V
• Max. continuous voltage, Uc (DC)
  • 42 V
• Number of poles
  • 1
• Overload - failure mode
  • Mode 1
• Protection level U
  • 150 V
• Rated current I
  • 12 A
• Rated voltage (AC)
  • 24 V
• Rated voltage (DC)
  • 34 V
• Requirements category acc. to IEC 61643-21
  • C1
• Standards
  • IEC 61643-21
• Surge current-carrying capacity C1
  • 0.25 kA 8/20 µs 0.5 kV 1.2/50 µs
• Voltage type
  • AC/DC
• Volume resistance
  • < 0.1 Ω

Rated Data Ul

• Certificate No. (UL)
  • E311081
• UL certificate
  • UL Zertifikat

Temperatures

• Humidity
  • 5...96 %
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Feed-through terminal, 6.2mm wide with varistors between the two signal lines and the mounting rail potential, TS 35 contact base. Each signal path can be opened using an isolator. A signal with max. 12A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
• Short specification
  • Feed-through terminal with varistors (MOV) between two signal lines and mounting rail potential.Each signal path can be opened using an isolator. TS 35 contact base. Version: 24 V UC
