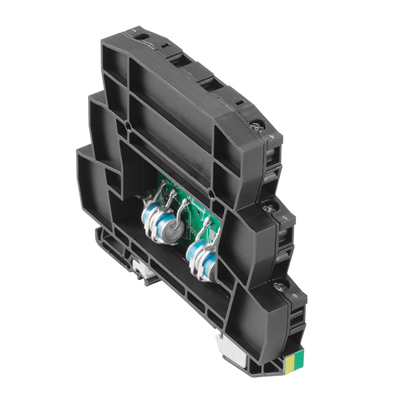

Weidmuller 1064720000

Approvals

• Approvals
  • CE, CSAEX, EAC, FUSAFETY
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-07
• eClass 9.0
  • 27-13-08-07
• eClass 9.1
  • 27-13-08-07
• ETIM 6.0
  • EC000943
• ETIM 7.0
  • EC000943
• UNSPSC
  • 30-21-18-11

Connection Data

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 4 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire cross-section, solid, max.
  • 6 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Csa Protection Data

• Gas group C
  • IIB
• Gas group D
  • IIA
• Gas groups A, B
  • IIC
• Input current, max. I
  • 12 A
• Input voltage, max. U
  • 407 V
• Internal capacity, max. C
  • 0 nF
• Internal inductance, max. L
  • 0 µH

Dimensions And Weights

• Depth
  • 81 mm
• Depth (inches)
  • 3.189 inch
• Height
  • 88.5 mm
• Height (inches)
  • 3.484 inch
• Net weight
  • 58.8 g
• Width
  • 12.4 mm
• Width (inches)
  • 0.488 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals

• GOST certificate
  • GOST-Zertifikat

General Data

• Colour
  • black
• Design
  • Terminal
• Isolating function
  • No
• Optical function display
  • No
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Measurement - Monitoring - Setting
• UL 94 flammability rating
  • V-0
• Version
  • Surge protection for measurement and control

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Probability Of Failure

• MTTF
  • 11,416 years
• PFH in 1*10
  • 0
• SFF
  • 100 %
• SIL in compliance with IEC 61508
  • 3
• SIL PAPER
  • SIL Paper
• λges
  • 10

Rated Data Iec / En

• Capacitance
  • 2.4 nF
• Discharge current I
  • 5 kA
• Lightning test current I
  • 2.5 kA
• Lightning test current, I
  • 1 kA
• Max. continuous voltage, Uc (AC)
  • 288 V
• Max. continuous voltage, Uc (DC)
  • 407 V
• Number of poles
  • 1
• Overload - failure mode
  • Modus 2
• Protection level U
  • < 1300 V
• Rated current I
  • 12 A
• Rated voltage (AC)
  • 240 V
• Rated voltage (DC)
  • 339 V
• Requirements category acc. to IEC 61643-21
  • C2, C3, D1
• Standards
  • IEC 61643-21
• Surge current-carrying capacity C2
  • 5 kA 8/20 μs
• Surge current-carrying capacity C3
  • 100 A 10/1000 μs
• Surge current-carrying capacity D1
  • 2.5 kA 10/350 μs
• Voltage type
  • AC/DC
• Volume resistance
  • < 0.1 Ω

Rated Data Ul

• UL certificate
  • UL Zertifikat

Ratings Iecex/Atex/Cul

• cUL certificate
  • cUL Certificate

Temperatures

• Humidity
  • 5...96 %
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Feed-through terminal, 12.4mm wide with sparkover gap between the two signal lines and the mounting rail potential, TS 35 contact base.A signal with max. 12A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
• Short specification
  • Feed-through terminal with sparkover gaps (GDT) between two signal lines and the mounting rail potential, TS 35 contact base. Version: 240 V UC 20kA
