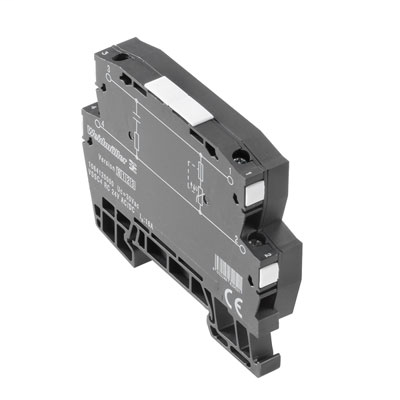

Weidmuller 1064130000

Approvals

• Approvals
  • CE, CSAEX, EAC, FUSAFETY, OEVE, UL
• ROHS
  • Conform
• UL File Number Search
  • E311081

Classifications

• eClass 10.0
  • 27-13-08-07
• eClass 9.0
  • 27-13-08-07
• eClass 9.1
  • 27-13-08-07
• ETIM 6.0
  • EC000943
• ETIM 7.0
  • EC000943
• UNSPSC
  • 30-21-18-11

Connection Data

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 4 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire cross-section, solid, max.
  • 6 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Csa Protection Data

• Gas group C
  • IIB
• Gas group D
  • IIA
• Gas groups A, B
  • IIC
• Input current, max. I
  • 16 A
• Input voltage, max. U
  • 407 V
• Internal capacity, max. C
  • 222 nF
• Internal inductance, max. L
  • 0 µH

Dimensions And Weights

• Depth
  • 58.5 mm
• Depth (inches)
  • 2.303 inch
• Height
  • 76 mm
• Height (inches)
  • 2.992 inch
• Net weight
  • 35 g
• Width
  • 12.4 mm
• Width (inches)
  • 0.488 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals

• GOST certificate
  • GOST-Zertifikat

General Data

• Colour
  • black
• Design
  • Terminal
• Isolating function
  • No
• Optical function display
  • No
• Protection degree
  • IP20
• Segment
  • Measurement - Monitoring - Setting
• UL 94 flammability rating
  • V-0
• Version
  • Surge protection for measurement and control

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Probability Of Failure

• MTTF
  • 4,048 years
• PFH in 1*10
  • 80
• SFF
  • 97.16 %
• SIL in compliance with IEC 61508
  • 3
• SIL PAPER
  • SIL Paper
• λges
  • 28.2

Rated Data Iec / En

• Capacitance
  • 220 nF
• Discharge current I
  • 1.2 kA
• Discharge current, max. (8/20 µs)
  • 2.5 kA
• Max. continuous voltage, Uc (AC)
  • 275 V
• Max. continuous voltage, Uc (DC)
  • 388 V
• Number of poles
  • 1
• Overload - failure mode
  • Mode 1
• Protection level U
  • < 500 V
• Rated current I
  • 20 A
• Rated voltage (AC)
  • 240 V
• Rated voltage (DC)
  • 339 V
• Requirements category acc. to IEC 61643-21
  • C1
• Standards
  • IEC 61643-21
• Surge current-carrying capacity C1
  • 0.25 kA 8/20 µs 0.5 kV 1.2/50 µs
• Voltage type
  • AC/DC
• Volume resistance
  • < 0.1 Ω

Rated Data Ul

• Certificate No. (UL)
  • E311081
• UL certificate
  • UL Zertifikat

Ratings Iecex/Atex/Cul

• cUL certificate
  • cUL Certificate

Temperatures

• Humidity
  • 5...96 %
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Feed-through terminal, 12.4mm wide with a sparkover gap and interference suppressor combination between the signal line connection and the mounting rail potential, TS 35 contact base. A signal with max. 20A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
• Short specification
  • Feed-through terminal with a sparkover gap and interference suppressor combination between the signal line connection and the mounting rail potential, TS 35 contact base. Version: 240 V UC
