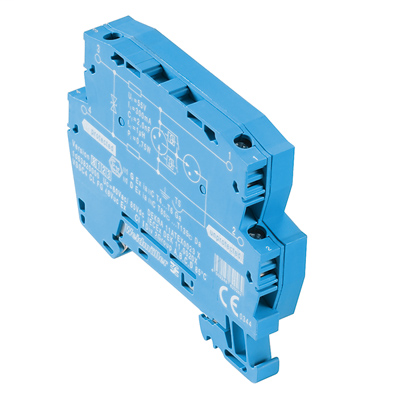

Weidmuller 1063810000

Approvals

• Approvals
  • CE, CSAEX, DEKRAATEX, EAC, FUSAFETY, IECEXDEK
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-07
• eClass 9.0
  • 27-13-08-07
• eClass 9.1
  • 27-13-08-07
• ETIM 6.0
  • EC000943
• ETIM 7.0
  • EC000943
• UNSPSC
  • 30-21-19-21

Connection Data

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 4 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire cross-section, solid, max.
  • 6 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Csa Protection Data

• Gas group C
  • IIB
• Gas group D
  • IIA
• Gas groups A, B
  • IIC
• Input current, max. I
  • 300 mA
• Input voltage, max. U
  • 42 V
• Internal capacity, max. C
  • 1 nF
• Internal inductance, max. L
  • 0 µH

Dimensions And Weights

• Depth
  • 58.5 mm
• Depth (inches)
  • 2.303 inch
• Height
  • 76 mm
• Height (inches)
  • 2.992 inch
• Net weight
  • 39.8 g
• Width
  • 12.4 mm
• Width (inches)
  • 0.488 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals

• GOST certificate
  • GOST-Zertifikat

General Data

• Colour
  • Light Blue
• Design
  • Terminal
• Isolating function
  • No
• Optical function display
  • No
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Measurement - Monitoring - Setting
• UL 94 flammability rating
  • V-0
• Version
  • Surge protection for measurement and control

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Probability Of Failure

• MTTF
  • 3,936 years
• PFH in 1*10
  • 1.95
• SFF
  • 93.28 %
• SIL in compliance with IEC 61508
  • 3
• SIL PAPER
  • SIL Paper
• λges
  • 29

Protection Ex - Data

• ATEX - dust labelling
  • II 1 D Ex ia IIIC T135 °C …T85 °C Da
• ATEX - gas labelling
  • II 1 G Ex ia IIC T4… T6 Ga
• IECEx - dust labelling
  • II 1 D Ex ia IIIC T135 °C …T85 °C Da
• IECEx - gas labelling
  • II 1 G Ex ia IIC T4… T6 Ga
• Input power, max. P
  • 0.75 W
• Input voltage, max. U
  • 42 V
• Internal capacity, max. C
  • 1 nF
• Internal inductance, max. L
  • 0 µH
• Temperature class T4/135°C (-40°C ... +120 °C) li
  • 300 mA
• Temperature class T5/100°C (-40 ° C ... +85 °C) li
  • 300 mA
• Temperature class T6/85 °C (-40 °C ... +70 °C) li
  • 300 mA

Rated Data Iec / En

• Dielectric strength at FG against PE
  • ≥ 500 V
• Discharge current I
  • 2.5 kA
• Discharge current, max. (8/20 µs)
  • 10 kA
• Input voltage, max. U
  • 42 V
• Insertion loss
  • 3.45 MHz
• Lightning test current I
  • 0.5 kA
• Lightning test current, I
  • 0.5 kA
• Max. continuous voltage, Uc (AC)
  • 30 V
• Max. continuous voltage, Uc (DC)
  • 42 V
• Number of poles
  • 1
• Overload - failure mode
  • Modus 2
• Protection level U
  • ≤ 2000 V
• Pulse-reset capacity
  • ≤ 15 ms
• Rated current I
  • 300 mA
• Rated voltage (AC)
  • 24 V
• Rated voltage (DC)
  • 34 V
• Requirements category acc. to IEC 61643-21
  • C2, C3, D1
• Signal transmission properties (-3 dB)
  • 3.4 MHz
• Standards
  • IEC61643-21:2009, DIN EN 60079-0.2009, DIN EN 60079-26:2007, DIN EN 61241-11:2006, HART-compatible
• Surge current-carrying capacity C2
  • 2.5 kA 8/20 µs 5 kV 1.2/50 µs
• Surge current-carrying capacity C3
  • 50 A 10/1000 μs
• Surge current-carrying capacity D1
  • 0.5 kA 10/350 μs
• Voltage type
  • AC/DC
• Volume resistance
  • 1.8 Ω 10 %

Ratings Iecex/Atex/Cul

• ATEX certificate
  • ATEX Certificate
• cUL certificate
  • cUL Certificate
• IEC Ex certificate
  • IECEX Zertifikat

Temperatures

• Humidity
  • 5...96 %
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Surge protection in a one piece, 12.4 mm wide terminal rail module for an intrinsically safe, floating-ground signal circuit with 24 VDC in 2-wire technology. A current loop (Ex ia) with max. 0.3 A can be protected here. When the terminal is fitted, a sparkover gap is simultaneously created to the high-impedance earth between the terminal rail (earth) and the reference potential (ground) of the protective circuit. Visual identification of the terminal according to the type of protective circuit and the voltage level. The terminal can be labelled. Suitable for ATEX applications. Tested according to explosion protection types in EX areas: Ex ia IIC / Ex iaD.
• Short specification
  • Surge protection in a one piece, 12.4 mm wide terminal rail module for an intrinsically safe, floating-ground signal circuit in 2-wire technology. Version: 24 VDC Suitable for ATEX applications
