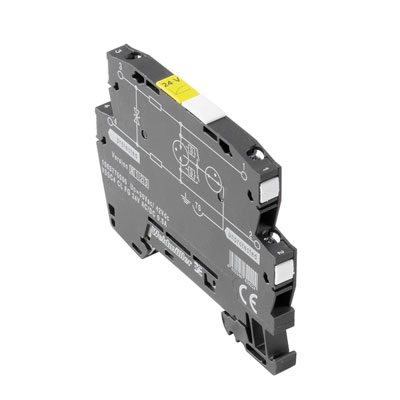

Weidmuller 1063770000

Approvals

• Approvals
  • CE, CSAEX, EAC, FUSAFETY, OEVE, UL
• ROHS
  • Conform
• UL File Number Search
  • E311081

Classifications

• eClass 10.0
  • 27-13-08-07
• eClass 9.0
  • 27-13-08-07
• eClass 9.1
  • 27-13-08-07
• ETIM 6.0
  • EC000943
• ETIM 7.0
  • EC000943
• UNSPSC
  • 30-21-19-21

Connection Data

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 4 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire cross-section, solid, max.
  • 6 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Csa Protection Data

• Gas group C
  • IIB
• Gas group D
  • IIA
• Gas groups A, B
  • IIC
• Input current, max. I
  • 500 mA
• Input voltage, max. U
  • 42 V
• Internal capacity, max. C
  • 1 nF
• Internal inductance, max. L
  • 0 µH

Dimensions And Weights

• Depth
  • 58.5 mm
• Depth (inches)
  • 2.303 inch
• Height
  • 76 mm
• Height (inches)
  • 2.992 inch
• Net weight
  • 27.4 g
• Width
  • 6.2 mm
• Width (inches)
  • 0.244 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals

• GOST certificate
  • GOST-Zertifikat

General Data

• Colour
  • black
• Design
  • Terminal
• Isolating function
  • No
• Optical function display
  • No
• Protection degree
  • IP20
• Rail
  • TS 35
• Segment
  • Measurement - Monitoring - Setting
• UL 94 flammability rating
  • V-0
• Version
  • Surge protection for measurement and control

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Probability Of Failure

• MTTF
  • 3,936 Years
• PFH in 1*10
  • 1.95
• SFF
  • 93.28 %
• SIL in compliance with IEC 61508
  • 3
• SIL PAPER
  • SIL Paper
• λges
  • 29

Rated Data Iec / En

• Dielectric strength at FG against PE
  • ≥ 500 V
• Discharge current I
  • 2.5 kA
• Discharge current, max. (8/20 µs)
  • 10 kA
• Fuse
  • 0.5 A
• Insertion loss
  • 3.45 MHz
• Lightning test current I
  • 0.5 kA
• Lightning test current, I
  • 0.5 kA
• Max. continuous voltage, Uc (AC)
  • 30 V
• Max. continuous voltage, Uc (DC)
  • 42 V
• Number of poles
  • 1
• Overload - failure mode
  • Modus 2
• Protection level U
  • ≤ 1500 V
• Pulse-reset capacity
  • ≤ 20 ms
• Rated current I
  • 500 mA
• Rated voltage (AC)
  • 24 V
• Rated voltage (DC)
  • 34 V
• Requirements category acc. to IEC 61643-21
  • C2, C3, D1
• Signal transmission properties (-3 dB)
  • 3.4 MHz
• Standards
  • IEC 61643-21, HART-compatible
• Surge current-carrying capacity C2
  • 2.5 kA 8/20 µs 5 kV 1.2/50 µs
• Surge current-carrying capacity C3
  • 50 A 10/1000 μs
• Surge current-carrying capacity D1
  • 0.5 kA 10/350 μs
• Voltage type
  • AC/DC
• Volume resistance
  • 1.8 Ω 10 %

Rated Data Ul

• Certificate No. (UL)
  • E311081
• UL certificate
  • UL Zertifikat

Ratings Iecex/Atex/Cul

• cUL certificate
  • cUL Certificate

Temperatures

• Humidity
  • 5...96 %
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Surge protection in a one piece, 6.2 mm wide DIN rail module for a floating-ground driven signal circuit with 24 V DC, 2-wire technology. A current loop with max. 0.5 A can be protected here. When the terminal is fitted, there is a simultaneous sparkover gap created to the high-impedance earth between the mounting rail (earth) and the reference potential (ground) of the protective switch. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
• Short specification
  • Surge protection in a one piece, 6.2 mm wide DIN rail module for a floating-ground driven signal circuit with 2-wire technology. Version: 24V DC
