Weidmuller 1062520000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

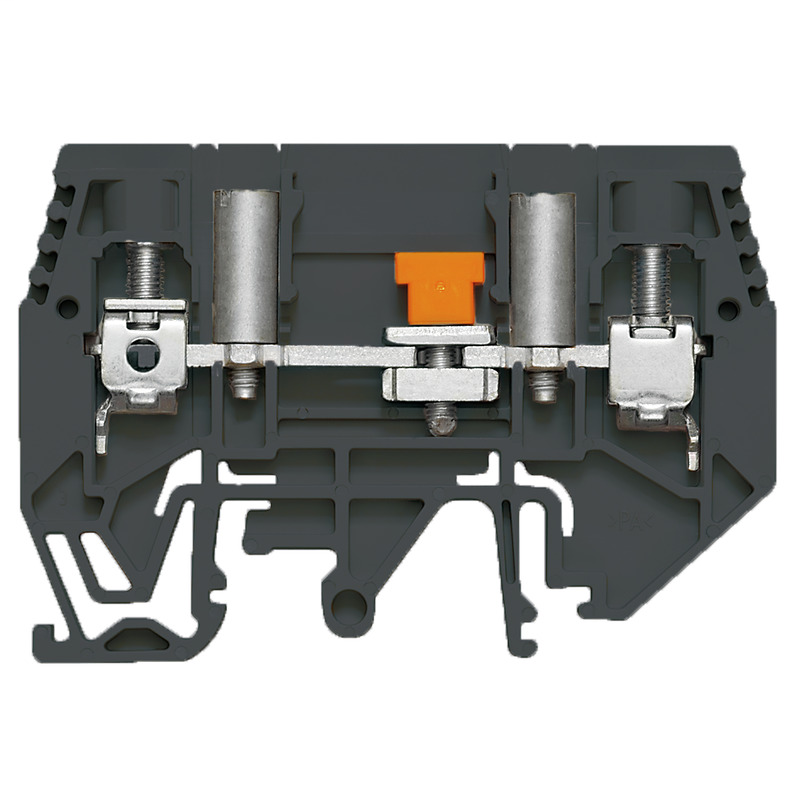

Test-disconnect terminal, Screw connection, 6 mm², 630 V, 41 A, sliding, blackWTL 6/1 EN STB SW
Weidmuller 1062520000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Type of mounting
- Snap-on
Approvals
- Approvals
- CSA, EAC, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 4.0 mm
- Number of connections
- 2
- Tightening torque, max.
- 1.6 Nm
- Tightening torque, min.
- 1 Nm
- Torque level with DMS electric screwdriver
- 3
- Type of connection
- Screw connection
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size B (CSA)
- 45 A
- Current size C (CSA)
- 45 A
- Voltage size B (CSA)
- 300 V
- Voltage size C (CSA)
- 300 V
- Wire cross section max. (CSA)
- 8 AWG
- Wire cross section min. (CSA)
- 20 AWG
Dimensions
- TS 32 offset
- 34.5 mm
- TS 35 offset
- 34.5 mm
Dimensions And Weights
- Depth
- 47.5 mm
- Depth (inches)
- 1.87 inch
- Depth including DIN rail
- 48.5 mm
- Height
- 68.5 mm
- Height (inches)
- 2.697 inch
- Net weight
- 25.28 g
- Width
- 7.9 mm
- Width (inches)
- 0.311 inch
Disconnect Terminals
- Cross-disconnect
- without
- Integral test socket
- Yes
- Slitting
- sliding
- Torque max. screw separator
- 0.7 Nm
- Torque min. screw separator
- 0.5 Nm
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Rated voltage
- 630 V
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 32, TS 35
- Version
- Screw connection, Spacer, With sockets, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 8 AWG
- Conductor size Factory wiring min. (UR)
- 20 AWG
- Conductor size Field wiring max. (UR)
- 8 AWG
- Conductor size Field wiring min. (UR)
- 20 AWG
- Current size B (UR)
- 45 A
- Current size C (UR)
- 45 A
- Voltage size B (UR)
- 300 V
- Voltage size C (UR)
- 300 V
