Description

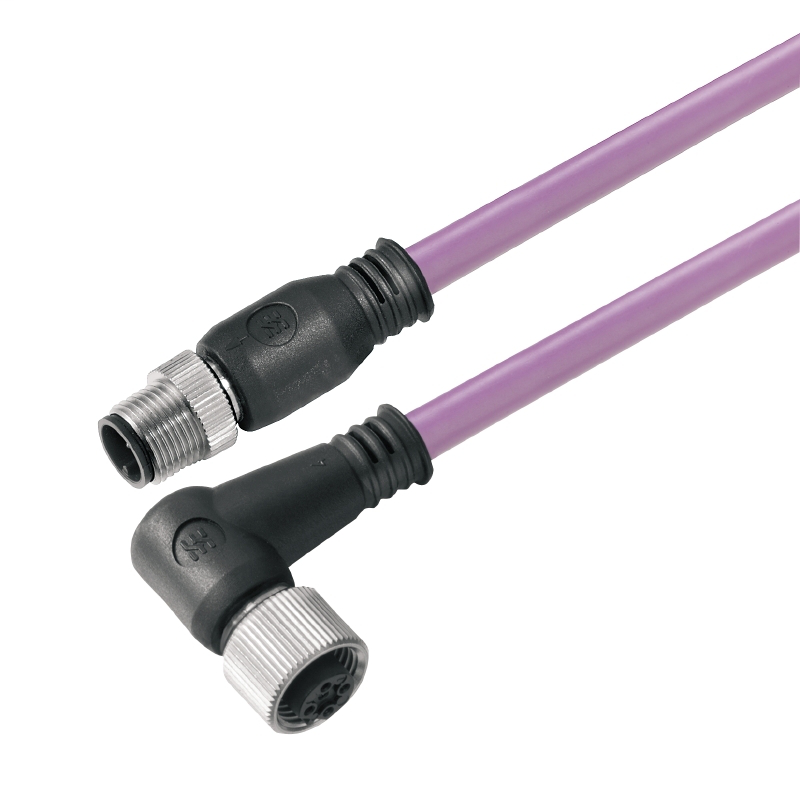

Bus line, Connecting line, M12 / M12, Number of poles: 2, 1.5 m, pin, straight - socket, 90°, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: YesSAIL-M12GM12W-PB-1.5E
Weidmuller 1062380150 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E307231
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Net weight
- 125 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Coding
- B
- Connection thread
- M12 / M12
- Contact surface
- Gold-plated
- Housing main material
- PUR
- Insulation strength
- 108 Ω
- jumpered
- No
- LED
- No
- Plugging cycles
- ≥ 100
- Pollution severity
- 3
- Protection degree
- IP67
- Rated current
- 4 A
- Rated voltage
- 250 V
- Temperature range of housing
- -25…+80 °C
- Threaded ring material
- Brass, nickel-plated
- Tightening torque
- M12: 0.8 - 1.2 Nm
- Version
- pin, straight - socket, 90°
Standards
- Certificate no. (cULus)
- E307231
Technical Specifications For Cable
- Bending radius, min., moving
- 9 x cable diameter
- Bending radius, min., stationary
- 18 x cable diameter
- Cable length
- 1.5 m
- Colour coding
- red, green
- Configurable cable length
- No
- Core cross-section
- 22 AWG
- Halogen
- Yes
- Hybrid cable
- No
- Insulation
- PVC
- Irradiation crosslinked
- No
- Number of poles
- 2
- Outside diameter
- 7.8 ± 0.2 mm
- Resistant to welding beads
- No
- Sheathing colour
- violet
- Sheath material
- PVC
- Shielded
- Yes
- Suitable for cable carriers
- No
- Temperature range, moving
- -5...60 °C
- Temperature range, stationary
- -20...70 °C
- Wire cross section
- PUR 0.25 mm² / PVC 0.34 mm²
Temperatures
- Storage temperature, min.
- -40 °C
