Weidmuller 1058860000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

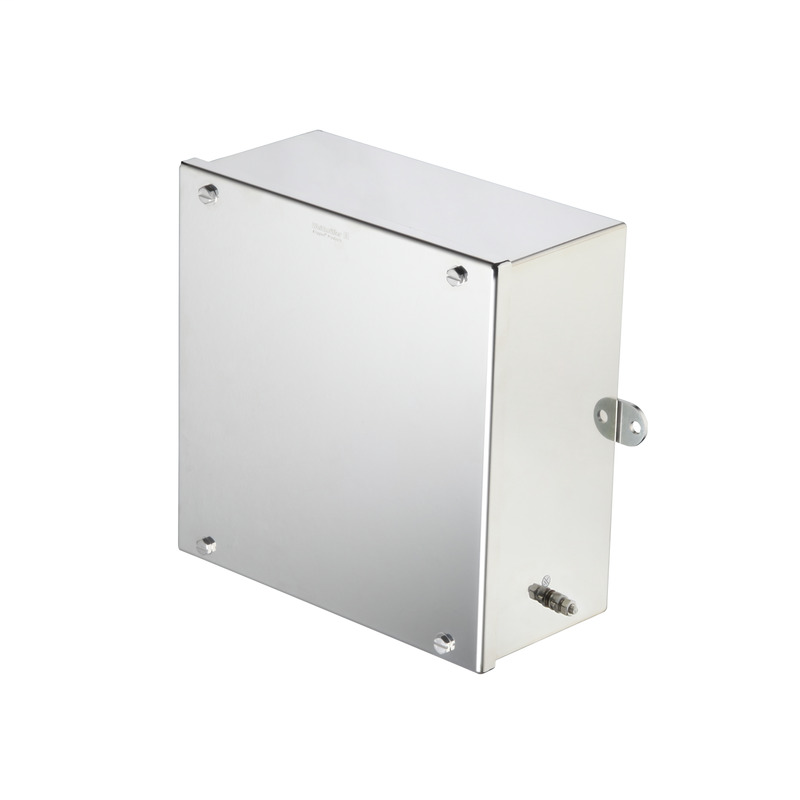

Klippon STB (Small Terminal Box), Empty enclosure, stainless steel enclosure, Height: 250 mm, Width: 250 mm, Depth: 120 mm, Material: Stainless steel 1.4404 (316L), electropolished, silverKLIPPON STB 4 SS E
Weidmuller 1058860000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC, GERMLLOYD, IBEXUATEX, IECEXIBE, INMETRO, KOREANCERT, LLOYDSREG, MARITREG
- ROHS
- Conform
- UL File Number Search
- E256877
Cable Glands, Left
- M12
- 24 ???New14???
- M16
- 21
- M20
- 12 ???New14???
- M25
- 10
- M32
- 8
- M40
- 3
- M50
- 2
- M63
- 1
Cable Glands, Right
- M12
- 24 ???New14???
- M16
- 21
- M20
- 12 ???New14???
- M25
- 10
- M32
- 8
- M40
- 3
- M50
- 2
- M63
- 1
Cable Glands, Top/Bottom
- M12
- 24 ???New14???
- M16
- 21
- M20
- 12 ???New14???
- M25
- 10
- M32
- 8
- M40
- 3
- M50
- 3
- M63
- 2
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (ATEX)
- IBExU07ATEX1148
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (IECEx)
- IECEx IBE 09.0019
- Certificate no. assembled enclosure (INMETRO)
- IEx 13.0003
- Certificate no., assembled enclosure (KOSHA)
- 16-AV4BO-0247X
- Certificate no. (cULus)
- E256877
- Certificate no. empty enclosure (ATEX)
- IBExU 07ATEX1147U
- Certificate no., empty enclosure (EAC)
- RU C-DE.ГБ08.B.00472
- Certificate no. empty enclosure (IECEx)
- IECEx IBE 09.0018U
- Certificate no. empty enclosure (INMETRO)
- IEx 13.0002U
- Certificate No. (GERMLLOYD)
- 59358-08
- Certificate No. (GOSTEX)
- POCCDE.AI75.B16048
- Certificate No. (MARITREG)
- 15.40041.250
Classifications
- eClass 10.0
- 27-18-05-02
- eClass 9.0
- 27-18-05-02
- eClass 9.1
- 27-18-05-02
- ETIM 6.0
- EC002503
- ETIM 7.0
- EC002503
Dimensions And Weights
- Depth
- 120 mm
- Depth (inches)
- 4.724 inch
- Height
- 250 mm
- Height (inches)
- 9.842 inch
- Mounting dimension - width
- 275 mm
- Net weight
- 3,850 g
- Weight
- 4.45 g
- Width
- 250 mm
- Width (inches)
- 9.842 inch
General Information
- Areas of use
- Explosive risk zone, Packaging industry, Transportation, Process industry, Marine engineering
- Enclosure attachment
- Welded-on mounting foot with 8-mm holes
- Impact resistance
- 10 J version standard, 7 J ATEX version
- Integral fixing
- TAS 20 rail welded to floor
- Lid attachment
- M5 hexagonal screw with slot and 10mm distance across flats
- Material
- Stainless steel 1.4404 (316L)
- Material thickness
- 1.5 mm
- Material thickness of enclosure
- 1.5 mm
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -60 °C
- Protection degree
- IP66
- Seal material
- Silicone
- Surface finish
- electropolished
- Torque for lid screws
- 2.5 Nm
Horizontal Assembly
- WDU 10 / ZDU 10
- 2x22
- WDU 16 / ZDU 16
- 2x18
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x42
- WDU 4 / ZDU 4
- 2x35
- WDU 6 / ZDU 6
- 2x27
Product Information
- Product information
- the ambient temperature for the assembly will be reduced to +60°C and the surface temperature to +100°C.
Vertical Assembly
- WDU 10 / ZDU 10
- 2x22
- WDU 16 / ZDU 16
- 2x18
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x42
- WDU 4 / ZDU 4
- 2x35
- WDU 6 / ZDU 6
- 2x27
