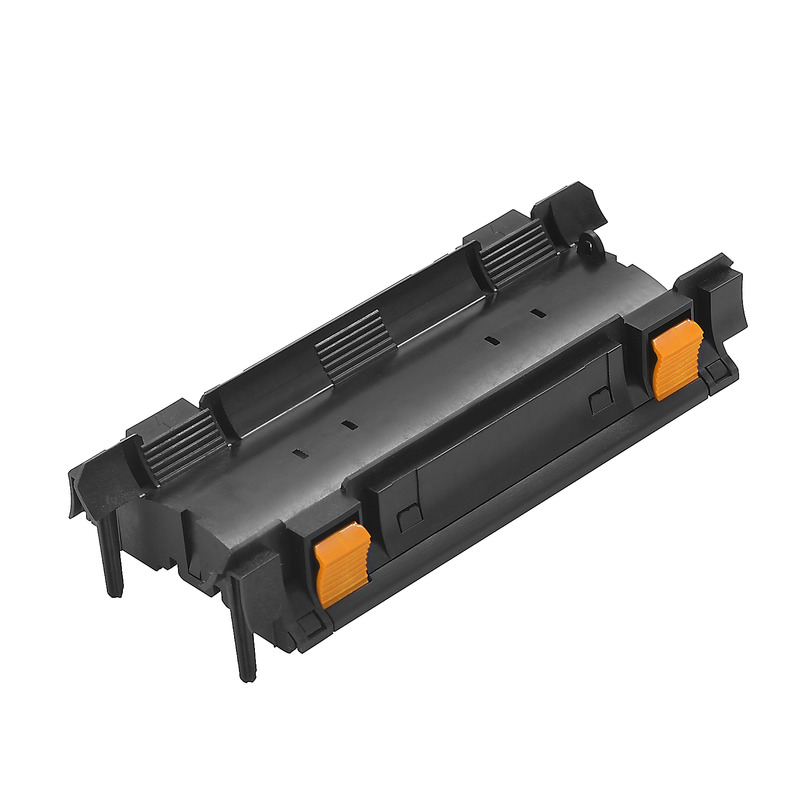

Weidmuller 1052170000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SDST 4TR POCON 8
Weidmuller 1052170000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- ETIM 6.0
- EC002848
- ETIM 7.0
- EC002848
Dimensions And Weights
- Net weight
- 68.38 g
General Information
- Protection degree
- IP20
- Rated current
- 300 A / 1 s, 60 A / 6 s, 1-mm conductor²: 19 A
Technical Data
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 6 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
- Connection cross-section, stranded, max.
- 10 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Max. voltage
- 2.21 kV / 50 Hz for 1 min
- Number of feed-through contacts
- 8
- Number of signal contacts
- 1
- Pollution severity
- 3
- Protection degree
- IP20
- Rated current
- 300 A / 1 s, 60 A / 6 s, 1-mm conductor²: 19 A
- Rated voltage (text)
- 250 V, 2.5 kV
- Type of mounting
- Section, Rail
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, solid, max.
- 10 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Temperatures
- Operating temperature
- -40 °C.../TX]55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Wires For Clamping
- Connection cross-section, stranded, max.
- 10 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
