Description

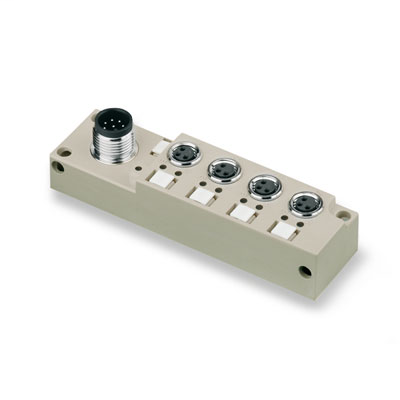

SAI Passive, Sensor-actuator passive distributor, M8, with M12 outlet, 8-pole, A-coded, NoSAI-4-S 3P M8 L OL
Weidmuller 1051760000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-01-08
- eClass 9.0
- 27-44-01-08
- eClass 9.1
- 27-44-01-08
- ETIM 6.0
- EC002585
- ETIM 7.0
- EC002585
Connection Data
- Distributor outlet
- with M12 outlet, 8-pole, A-coded
Dimensions And Weights
- Depth
- 113 mm
- Depth (inches)
- 4.449 inch
- Height
- 18.2 mm
- Height (inches)
- 0.717 inch
- Net weight
- 64 g
- Width
- 24 mm
- Width (inches)
- 0.945 inch
Electrical Data
- Insulation strength
- 109 Ω
- Max. current-carrying capacity per slot
- 2 A
- Rated voltage, max.
- 30 V
- Rated voltage, min.
- 15 V
- Total current
- 2 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Connection thread
- M8
- LED
- No
- Number of contact sockets
- 4
- Number of poles
- 3
- Pollution severity
- 3
- Protection degree
- IP68
Material Data
- Contact material
- CuZn
- Contact surface
- Gold-plated
Technical Data Cable
- Number of poles
- 3
- Suitable for cable carriers
- No
Temperatures
- Operating temperature
- -20 - 70°C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -20 °C
