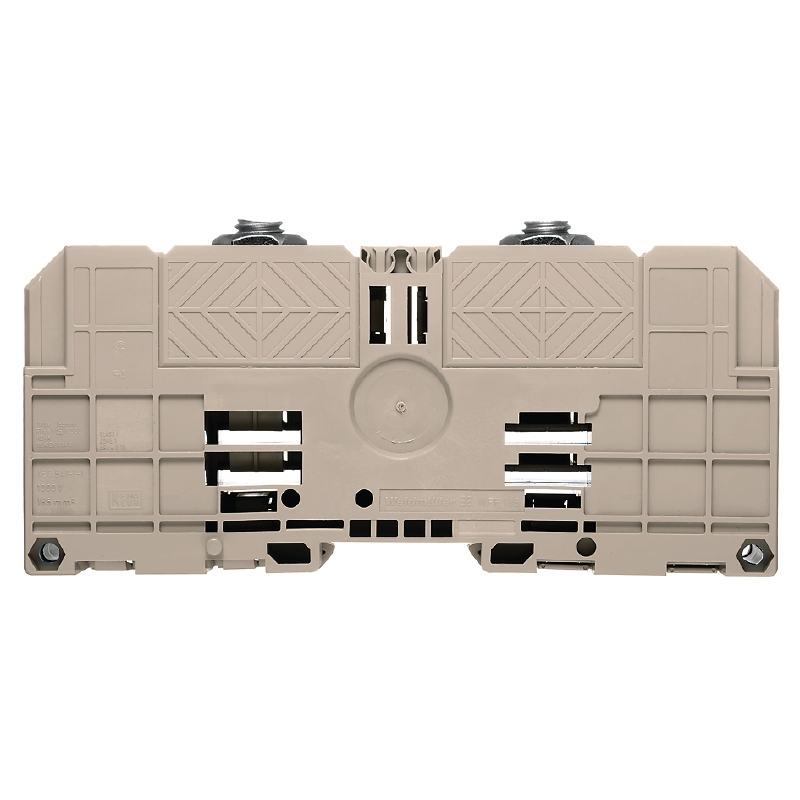

Weidmuller 1049250000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 185 mm², Threaded stud connection, Direct mounting, TS 35WFF 185 NFF
Weidmuller 1049250000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting, TS 35
- Open sides
- closed
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- Cable lug to DIN 46234
- 10...240 mm²
- Clamping range, bolted connection , max.
- 240 mm²
- Clamping range, bolted connection , min.
- 10 mm²
- Clamping range, max.
- 240 mm²
- Clamping range, min.
- 10 mm²
- Number of connections
- 2
- Stud size for spade connection
- M 12
- Tightening torque, max.
- 60 Nm
- Tightening torque, min.
- 50 Nm
- Type of connection
- Threaded stud connection
Dimensions
- TS 35 offset
- 81.5 mm
Dimensions And Weights
- Depth
- 77.2 mm
- Depth (inches)
- 3.039 inch
- Height
- 163 mm
- Height (inches)
- 6.417 inch
- Net weight
- 553 g
- Width
- 55 mm
- Width (inches)
- 2.165 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 353 A
- Power loss in accordance with IEC 60947-7-x
- 11.3 W
- Rated cross-section
- 185 mm²
- Rated current
- 353 A
- Rated voltage
- 500 V
- Volume resistance according to IEC 60947-7-x
- 0.09 mΩ
Stud Connection
- Cable lug to DIN 46234
- 10...240 mm²
- Clamping range, bolted connection , max.
- 240 mm²
- Clamping range, bolted connection , min.
- 10 mm²
- Stud size for spade connection
- M 12
- Tightening torque, max.
- 60 Nm
- Tightening torque, min.
- 50 Nm
System Specifications
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- PE connection
- No
- Rail
- TS 35
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
