Weidmuller 1028580000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

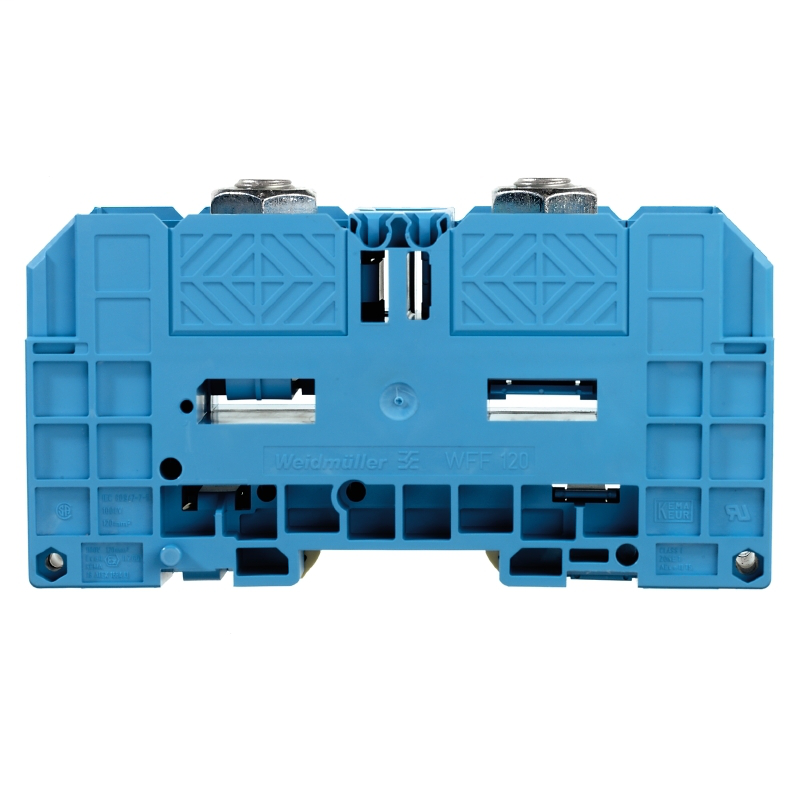

Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connectionWFF 120 BL
Weidmuller 1028580000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- Yes
- Number of similar terminals
- 1
- Open sides
- closed
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, CSA, CSAEX, CURUSEX, DNV GL, EAC, IECEXKEM, MARITREG, NEMKO, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- 2 x cable lugs DIN 46 234
- 6 to 120 mm²
- 2 x cable lugs DIN 46 235
- 16...120 mm²
- Cable lug to DIN 46234
- 6...150 mm²
- Cable lug to DIN 46235
- 16...150 mm²
- Clamping range, max.
- 150 mm²
- Clamping range, min.
- 6 mm²
- Number of connections
- 2
- Stud size for spade connection
- M 10
- Tightening torque, max.
- 20 Nm
- Tightening torque, min.
- 10 Nm
- Type of connection
- Threaded stud connection
Csa Rating Data
- Certificate No. (CSA)
- 200039-1244019
- Current size C (CSA)
- 310 A
- Voltage size C (CSA)
- 600 V
- Wire cross section max. (CSA)
- 250 kcmil
- Wire cross section min. (CSA)
- 10 AWG
Dimensions And Weights
- Depth
- 88.5 mm
- Depth (inches)
- 3.484 inch
- Depth including DIN rail
- 88.5 mm
- Height
- 132 mm
- Height (inches)
- 5.197 inch
- Net weight
- 243.12 g
- Weight
- 265.69 g
- Width
- 42 mm
- Width (inches)
- 1.654 inch
Material Data
- Colour
- blue
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 309 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 8.61 W
- Rated cross-section
- 120 mm²
- Rated current
- 269 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Volume resistance according to IEC 60947-7-x
- 0.12 mΩ
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA98ATEX1684U
- Certificate No. (IECEX)
- IECEXKEM07.0053U
- Current (ATEX)
- 234 A
- Current (IECEX)
- 234 A
- Ex 2014/34/EU label
- II 2 G D
- Marking EN 60079-7
- Ex eb II C Gb
- Max. voltage (ATEX)
- 1100 V
- Max. voltage (IECEX)
- 1100 V
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Wire cross section max. (ATEX)
- 120 mm²
- Wire cross section max. (IECEX)
- 120 mm²
Safety Note
- Safety notice
- Safety Information
Stud Connection
- 2 x cable lugs DIN 46 234
- 6 to 120 mm²
- 2 x cable lugs DIN 46 235
- 16...120 mm²
- Cable lug to DIN 46234
- 6...150 mm²
- Cable lug to DIN 46235
- 16...150 mm²
- Stud size for spade connection
- M 10
- Tightening torque, max.
- 20 Nm
- Tightening torque, min.
- 10 Nm
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- PE connection
- No
- Rail
- TS 35
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 250 kcmil
- Conductor size Factory wiring min. (UR)
- 10 AWG
- Conductor size Field wiring max. (UR)
- 250 kcmil
- Conductor size Field wiring min. (UR)
- 10 AWG
- Current size C (UR)
- 310 A
- Voltage size C (UR)
- 1000 V
