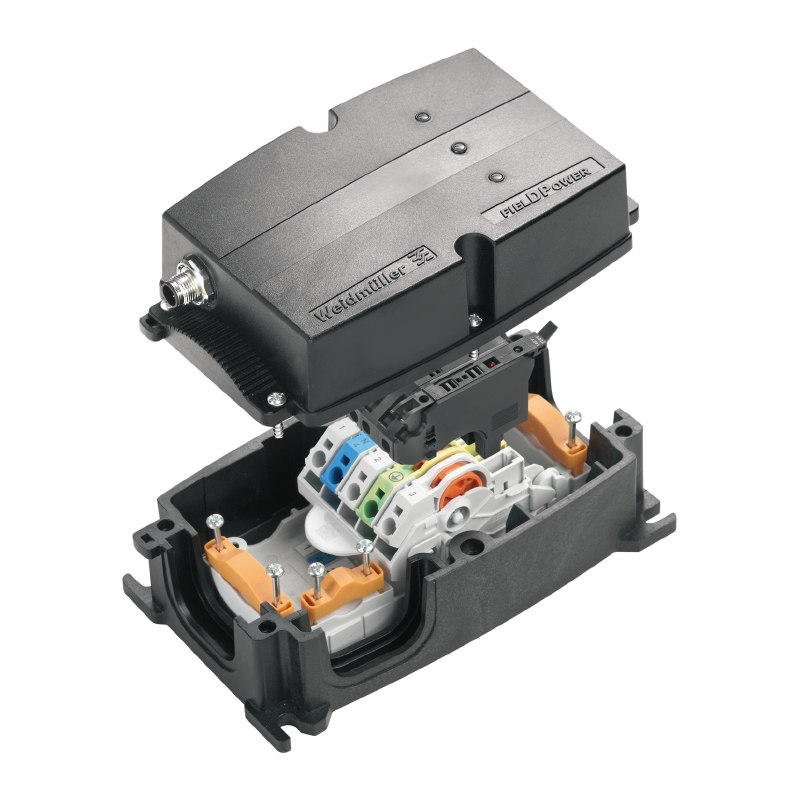

Weidmuller 1025060000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FP BOX FUSE R
Weidmuller 1025060000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Clamping Capacity, Push-In Connection, Distribution
- Blade size
- 0.6 x 3.5 mm
- Blade size, PUSH IN connection
- 0.6 x 3.5 mm
- Cross-section for connected wire, flexible, PUSH IN connection, max.
- 10 mm²
- Cross-section for connected wire, flexible, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max.
- 6 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max.
- 6 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max.
- 6 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max.
- 6 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, PUSH IN connection, solid, max.
- 6 mm²
- Cross-section for connected wire PUSH IN connection, solid, min.
- 0.5 mm²
- Finely-stranded flexible, max. PUSH IN connection
- 6 mm²
- Finely-stranded flexible, min. PUSH IN connection
- 0.5 mm²
- Stripping length, PUSH IN connection
- 14 mm
- Wire connection cross section, stranded, PUSH IN connection, max.
- 6 mm²
- Wire connection cross section, stranded, PUSH IN connection, min.
- 0.5 mm²
Classifications
- eClass 10.0
- 27-14-24-09
- eClass 9.0
- 27-14-24-09
- eClass 9.1
- 27-14-24-09
- ETIM 6.0
- EC000214
- ETIM 7.0
- EC000214
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Height
- 86 mm
- Height (inches)
- 3.386 inch
- Length
- 181 mm
- Length (inches)
- 7.126 inch
- Net weight
- 906 g
- Width
- 104 mm
- Width (inches)
- 4.094 inch
Dimensions Of Box
- Height
- 86 mm
- Length
- 181 mm
- Width
- 104 mm
General Data
- Can be coded
- Yes, Coded on PE
- Halogen
- No
- Insulating material
- Polycarbonate, GF 10
- Material colour
- black
- Protection degree
- IP65
- Silicone
- No
- UL 94 flammability rating
- 5VA
General Information #96 Connectors
- Can be coded
- Yes, Coded on PE
- Cartridge fuse
- 6.3 x 32 mm (1/4 x 1 1/4")
- Failure indicator
- Red LED
- Number of connections / pole
- 1
- UL 94 flammability rating
- 5VA
Idc Connection Clamping Capacity, Power Cable
- Blade size
- 0.6 x 3.5 mm
- Connection cross-section, finely stranded, max.
- 6 mm²
- Connection cross-section, finely stranded, min.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection cross-section, stranded, min.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 2.5 mm²
- Wire cross-section, solid, max.
- 6 mm²
- Wire cross-section, solid, min.
- 1.5 mm²
Rated Data Acc. To Iec
- Rated cross-section
- 6 mm²
- Rated current
- 12 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 690 V
- Standards
- IEC 60947-7-3
Temperatures
- Operating temperature
- -40 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
- Temperature range, installation, max.
- 40 °C
- Temperature range, installation, min.
- 10 °C
