Description

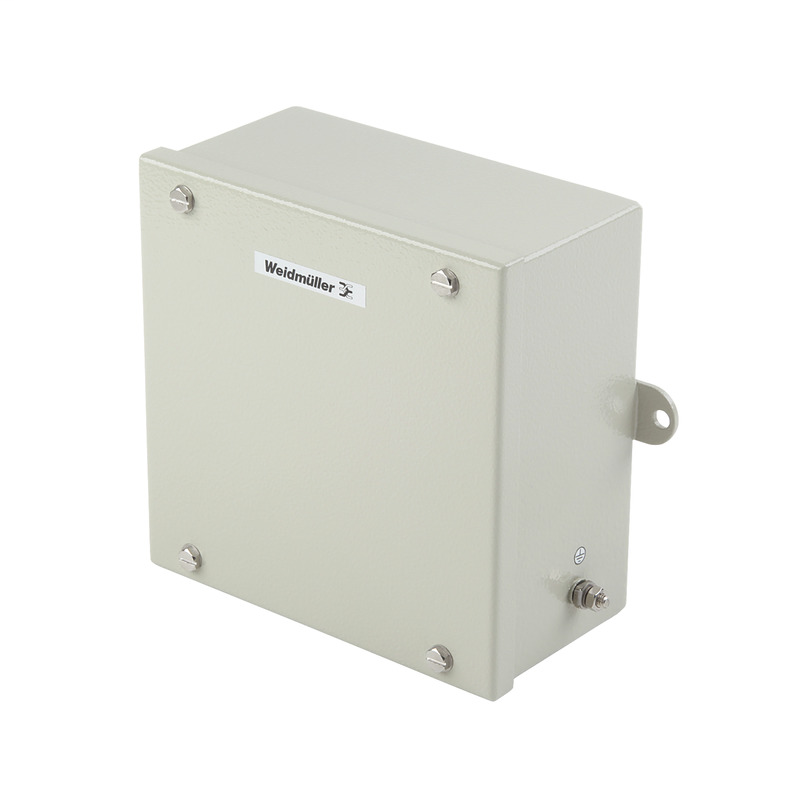

Klippon STB (Small Terminal Box), Empty enclosure, Sheet steel enclosure, Height: 190 mm, Width: 150 mm, Depth: 90 mm, Material: Sheet steel, Powder-coated, Pebble greyKLIPPON STB 2.1 MS HT
Weidmuller 1025010000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC, LLOYDSREG
- ROHS
- Conform
Cable Glands, Left
- M12
- 15 ???New14???
- M16
- 10
- M20
- 8
- M25
- 3
- M32
- 3
- M40
- 2
- M50
- 1
Cable Glands, Right
- M12
- 18
- M16
- 10
- M20
- 10
- M25
- 3
- M32
- 3
- M40
- 2
- M50
- 1
Cable Glands, Top/Bottom
- M12
- 15 ???New14???
- M16
- 10
- M20
- 8
- M25
- 3
- M32
- 3
- M40
- 2
- M50
- 1
Certificate Numbers Enclosure
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no., empty enclosure (EAC)
- RU C-DE.ГБ08.B.00472
- Certificate No. (MARITREG)
- 1.540.041.250
Classifications
- eClass 10.0
- 27-18-01-01
- eClass 9.0
- 27-18-01-01
- eClass 9.1
- 27-18-92-90
- ETIM 6.0
- EC000261
- ETIM 7.0
- EC000261
Dimensions And Weights
- Depth
- 90 mm
- Depth (inches)
- 3.543 inch
- Height
- 190 mm
- Height (inches)
- 7.48 inch
- Mounting dimension - width
- 175 mm
- Net weight
- 2,020 g
- Width
- 150 mm
- Width (inches)
- 5.905 inch
General Information
- Areas of use
- Transportation, Marine engineering, Process industry, Packaging industry
- Enclosure attachment
- Welded-on mounting foot with 8-mm holes
- Impact resistance
- 10 J version standard
- Integral fixing
- TAS 20 rail welded to floor
- Lid attachment
- M5 hexagonal screw with slot and 10mm distance across flats
- Material
- Sheet steel
- Material thickness
- 1.5 mm
- Material thickness of enclosure
- 1.5 mm
- Operating temperature, max.
- 120 °C
- Operating temperature, min.
- -60 °C
- Protection degree
- IP66
- Seal material
- Silicone
- Surface finish
- Powder-coated
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 x 16 stainless-steel bolts
Vertical Assembly
- WDU 10 / ZDU 10
- 1x15
- WDU 16 / ZDU 16
- 1x13
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x30
- WDU 4 / ZDU 4
- 1x25
- WDU 6 / ZDU 6
- 1x20
