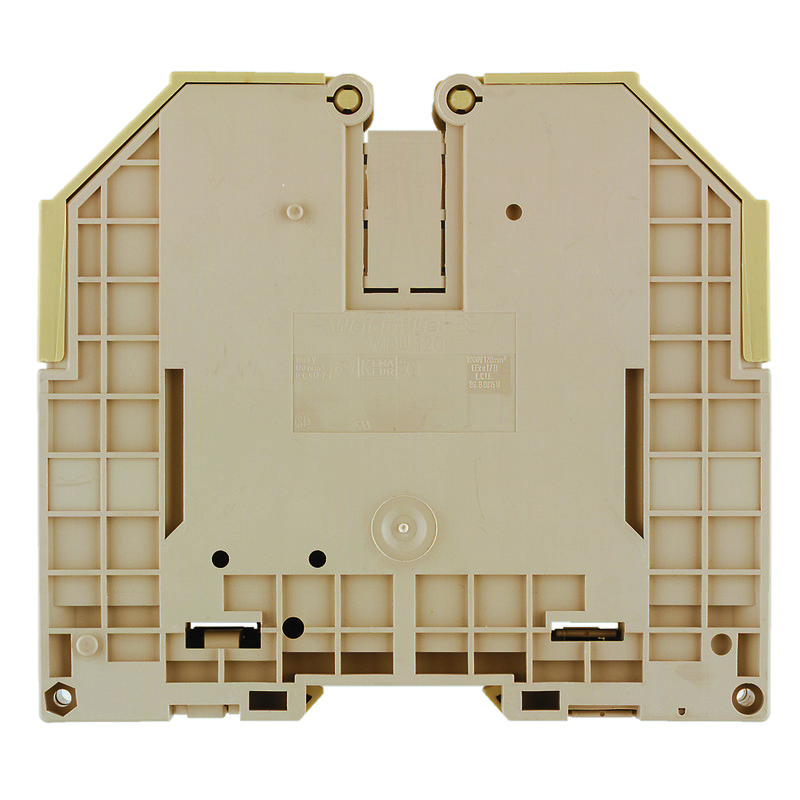

Weidmuller 1024500000

2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)

• Cross-section for connected wire, stranded, two clampable wires, max.
  • 70 mm²
• Cross-section for connected wire, stranded, two clampable wires, min.
  • 35 mm²
• Wire connection cross section, finely stranded, two clampable wires, min.
  • 35 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
  • 70 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
  • 35 mm²
• Wire cross-section, finely stranded, two clampable wires, max.
  • 70 mm²

Additional Technical Data

• Explosion-tested version
  • Yes
• Installation advice
  • Direct mounting
• Number of similar terminals
  • 1
• Open sides
  • closed
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE, CSA, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-20
• eClass 9.0
  • 27-14-11-20
• eClass 9.1
  • 27-14-11-20
• ETIM 6.0
  • EC000897
• ETIM 7.0
  • EC000897
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Rated Connection)

• Blade size
  • S6 (DIN 6911)
• Clamping range, max.
  • 150 mm²
• Clamping range, min.
  • 33.63 mm²
• Clamping screw
  • M 10
• Connection cross-section, stranded, max.
  • 150 mm²
• Connection cross-section, stranded, min.
  • 35 mm²
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • B13
• Number of connections
  • 2
• Stripping length
  • 35 mm
• Tightening torque, max.
  • 20 Nm
• Tightening torque, min.
  • 10 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • kcmil 250
• Wire connection cross section AWG, min.
  • AWG 2
• Wire connection cross section, finely stranded, max.
  • 150 mm²
• Wire connection cross-section, finely stranded, min.
  • 35 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 150 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 35 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 50 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 35 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 12400-241
• Current size C (CSA)
  • 285 A
• Voltage size C (CSA)
  • 600 V
• Wire cross section max. (CSA)
  • 250 AWG
• Wire cross section min. (CSA)
  • 2 AWG

Dimensions And Weights

• Depth
  • 117 mm
• Depth (inches)
  • 4.606 inch
• Depth including DIN rail
  • 125.5 mm
• Height
  • 132 mm
• Height (inches)
  • 5.197 inch
• Net weight
  • 517.8 g
• Weight
  • 540 g
• Width
  • 32 mm
• Width (inches)
  • 1.26 inch

Material Data

• Colour
  • dark beige
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Rating Data

• Current at maximum wires
  • 309 A
• Pollution severity
  • 3
• Power loss in accordance with IEC 60947-7-x
  • 8.61 W
• Rated cross-section
  • 120 mm²
• Rated current
  • 269 A
• Rated impulse withstand voltage
  • 8 kV
• Rated voltage
  • 1,000 V
• Standards
  • IEC 60947-7-1
• Volume resistance according to IEC 60947-7-x
  • 0.12 mΩ

Rating Data Iecex/Atex

• Certificate No. (ATEX)
  • DEMKO14ATEX1338U
• Certificate No. (IECEX)
  • IECEXULD14.0005U
• Current (ATEX)
  • 265 A
• Current (IECEX)
  • 265 A
• Ex 2014/34/EU label
  • II 2 G D
• Marking EN 60079-7
  • Ex eb II C Gb
• Max. voltage (ATEX)
  • 1100 V
• Max. voltage (IECEX)
  • 1100 V
• Operating temperature range
  • For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
• Wire cross section max. (ATEX)
  • 150 mm²
• Wire cross section max. (IECEX)
  • 150 mm²

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • No
• Levels cross-connected internally
  • No
• N-function
  • No
• Number of clamping points per level
  • 2
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • Yes
• Rail
  • TS 35
• Version
  • Screw connection, for screwable cross-connection, in closed state

Temperatures

• Continuous operating temp., max.
  • 130 °C
• Continuous operating temp., min.
  • -60 °C
• Operating temperature range
  • For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (UR)
  • E60693
• Conductor size Factory wiring max. (UR)
  • 250 kcmil
• Conductor size Factory wiring min. (UR)
  • 2 AWG
• Conductor size Field wiring max. (UR)
  • 250 kcmil
• Conductor size Field wiring min. (UR)
  • 2 AWG
• Current size C (UR)
  • 225 A
• Voltage size C (UR)
  • 1000 V
