Weidmuller 1023230000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

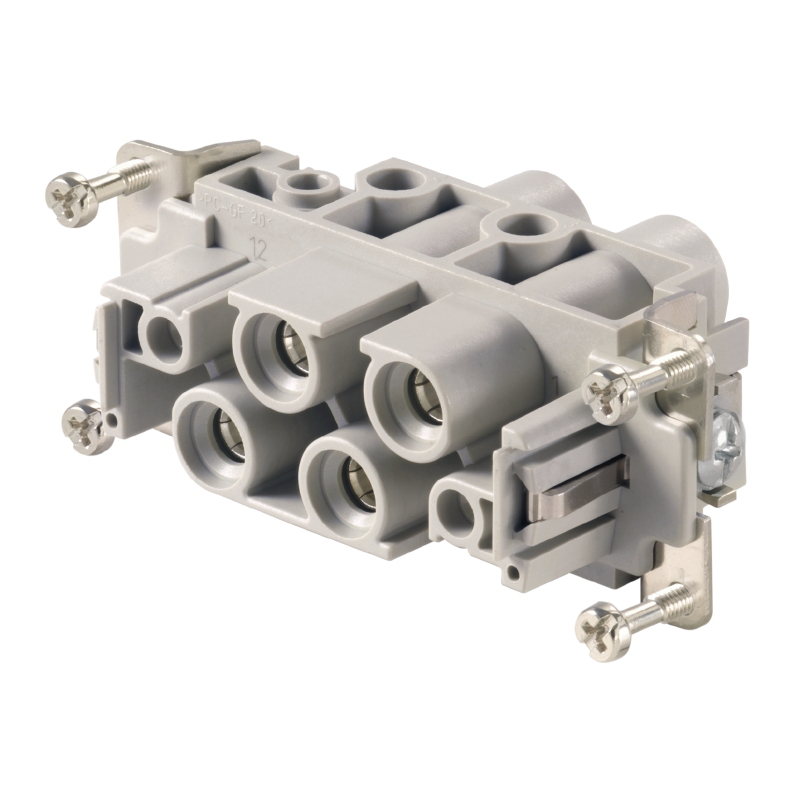

HDC insert, Female, 830 V, 80 A, Number of poles: 6, Screw connection, Size: 6HDC S4/2 FS
Weidmuller 1023230000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CSA, cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-02-05
- eClass 9.0
- 27-44-02-05
- eClass 9.1
- 27-44-02-05
- ETIM 6.0
- EC000438
- ETIM 7.0
- EC000438
- UNSPSC
- 30-21-18-01
Connection Data
- Conductor cross-section, max.
- 16 mm²
- Conductor cross-section, min.
- 1.5 mm²
- Wire connection cross section AWG, max.
- AWG 6
- Wire connection cross section AWG, min.
- AWG 16
Connection Data Pe
- Blade size, crosshead
- Gr. PH2
- Blade size, slotted (PE connection)
- SD 1.2 x 6.5
- Connection type PE
- Screw connection
- Fixing screw
- M 5
- Rated cross-section
- 16 mm²
- Stripping length PE connection
- 13 mm
- Tightening torque, max. PE connection
- 2.5 Nm
- Tightening torque, min. PE connection
- 2 Nm
- Wire connection cross section, finely stranded, max.
- 16 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross section, AWG (PE), max.
- AWG 6
- Wire cross section, AWG (PE), min.
- AWG 20
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Design
- Blade size, crosshead
- Gr. PH2
- Product family
- HDC insert
- Product type
- Insert
- Type
- Female
- Type of connection
- Screw connection
Dimensions
- Height of socket
- 46.2 mm
- Total length base
- 84.5 mm
Dimensions And Weights
- Depth
- 84.5 mm
- Depth (inches)
- 3.327 inch
- Height
- 46.2 mm
- Height (inches)
- 1.819 inch
- Net weight
- 109 g
- Width
- 34 mm
- Width (inches)
- 1.339 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- Insulating material group
- IIIa
- Insulation strength
- 1010 Ω
- Material
- Copper alloy
- Number of poles
- 6
- Number of power contacts
- 4
- Number of signal contacts
- 2
- Plugging cycles, silver
- ≥ 500
- Pollution severity
- 3
- Rated current (DIN EN 61984)
- 80 A
- Rated impulse voltage (DIN EN 61984)
- 8 kV
- Rated voltage according to UL/CSA
- 600 V AC/DC
- Rated voltage (DIN EN 61984)
- 830 V
- Series
- MixMate
- Size
- 6
- Surface finish
- Silver passivated
- Type
- Female
- UL 94 flammability rating
- V-0
- Volume resistance
- ≤ 1 mΩ
General Descriptions
- Number of poles
- 6
- Size
- 6
Material
- Colour
- beige
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- Material
- Copper alloy
- UL 94 flammability rating
- V-0
Power Contact
- Clamping range, power contact, max.
- 16 mm²
- Clamping range, power contact, min.
- 1.5 mm²
- Number of poles, performance contact
- 4
- Rated current (DIN EN 61984), power contact
- 80 A
- Rated impulse voltage (DIN EN 61984), power contact
- 8 kV
- Rated voltage (DIN EN 61984), power contact
- 830 V
- Stripping length, performance contact
- 15 mm
- Type of connection, power contact
- Screw connection
Signal Contact
- AF size
- SD 0.6 x 3.5
- Clamping range, signal contact, max.
- 2.5 mm²
- Clamping range, signal contact, min.
- 0.5 mm²
- Number of poles, signal
- 2
- Rated current (DIN EN 61984), signal
- 16 A
- Rated impulse voltage (DIN EN 61984), signal
- 6 kV
- Rated voltage (DIN EN 61984), signal contact
- 400 V
- Stripping length, signal
- 8 mm
- Type of connection, signal
- Screw connection
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Blade size, slotted (screw connection)
- SD 0.8 x 4.0
- Clamping screw
- M 6
- Conductor cross-section, max.
- 16 mm²
- Conductor cross-section, min.
- 1.5 mm²
- Material
- Copper alloy
- Size
- 6
- Stripping length, rated connection
- 15 mm
- Surface finish
- Silver passivated
- Type of connection
- Screw connection
- Volume resistance
- ≤ 1 mΩ
- Wire connection cross section AWG, max.
- AWG 6
- Wire connection cross section AWG, min.
- AWG 16
- Wire connection cross section, finely stranded, max.
- 16 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross-section, solid, max.
- 16 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
