Weidmuller 1010840015
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

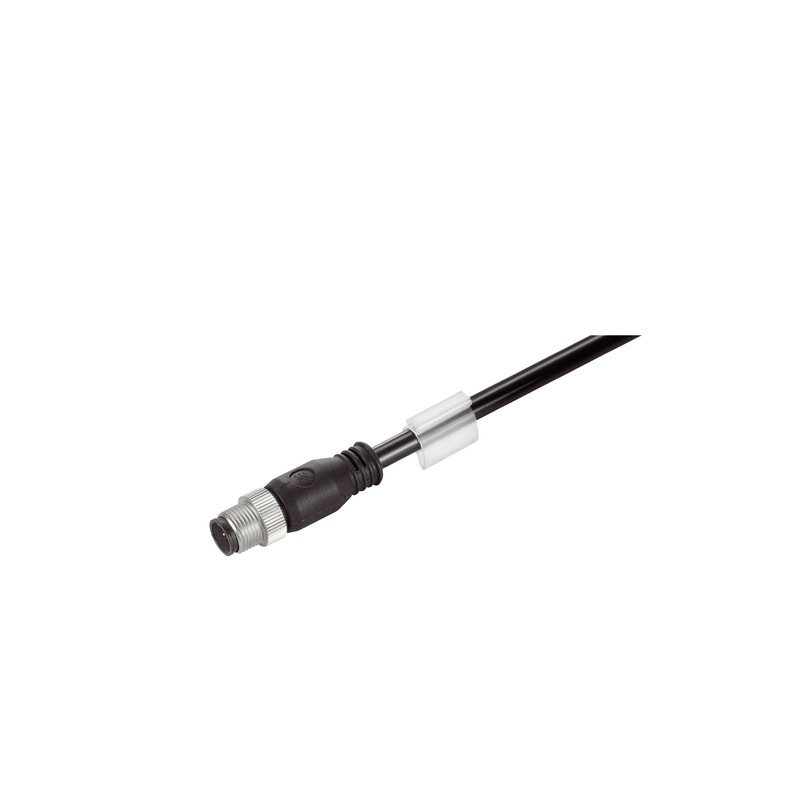

System cable, M12 D-code – IP 67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), Radox GKW S, 1.5 mIE-C5DB4RE0015MCSXXX-X
Weidmuller 1010840015 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Cable Structure
- Cross-section
- 2*2*AWG 22/7 - 2*2*0.36 mm²
- Insulation cross-section
- 1.95 mm
- Material sheath
- Radox GKW S
- Sheath diameter, max.
- 7.55 mm
- Sheath diameter, min.
- 6.95 mm
- Sheathing colour
- black
- Shielding
- SF/UTP
- Strands
- 7
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 1.95 mm
- Length
- 1.5 m
- Length (inches)
- 0.059 inch
- Net weight
- 151 g
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Abrasion resistance
- very good
- Corrosiveness of fumes
- to IEC 60754-2
- Halogen
- halogen-free, according to IEC 60754-2
- Impervious to smoke
- According to BS 6853 Appendix D, in accordance with EN 50268-2, According to IEC 61034-2
- Min. bending radius, repetitive
- 6 *diameter
- Resistance to oils
- in accordance with EN 50306-3
Plug
- Connector left
- M12 D-code – IP 67 straight pin
- Connector right
- Open
Standards
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-2-101
- Corrosiveness of fumes
- to IEC 60754-2
- Fire protection in buses
- According to ISO 6722-1 5.22 (UN ECE-R 118.01)
- Fire safety for railway vehicles
- According to DIN 5510-2 fire safety levels 1,2,3,4, According to BS 6853, According to EN50288-2-2, According to EN 45545, HL1 - HL3
- Flames propagate vertically on bundled cables
- According to BS4066-3, DIN EN 50266-2-5, According to IEC 60332-3-25 D
- Fluorine content
- According to EN 60684-2 Section 45.2
- Hydrogen halide content
- According to EN-50267-2-1, According to IEC 60754-1
- Impervious to smoke
- According to BS 6853 Appendix D, in accordance with EN 50268-2, According to IEC 61034-2
- Multi-wire metallic data and control cable
- According to EN50288-2-2
- Poisonous gases
- According to BS 6853 Appendix B
Temperatures
- Installation temperature
- -25 °C...90 °C
- Operating temperature
- -40 °C...90 °C
- Operating temperature, max.
- 90 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...90 °C
- Storage temperature, max.
- 90 °C
- Storage temperature, min.
- -40 °C
