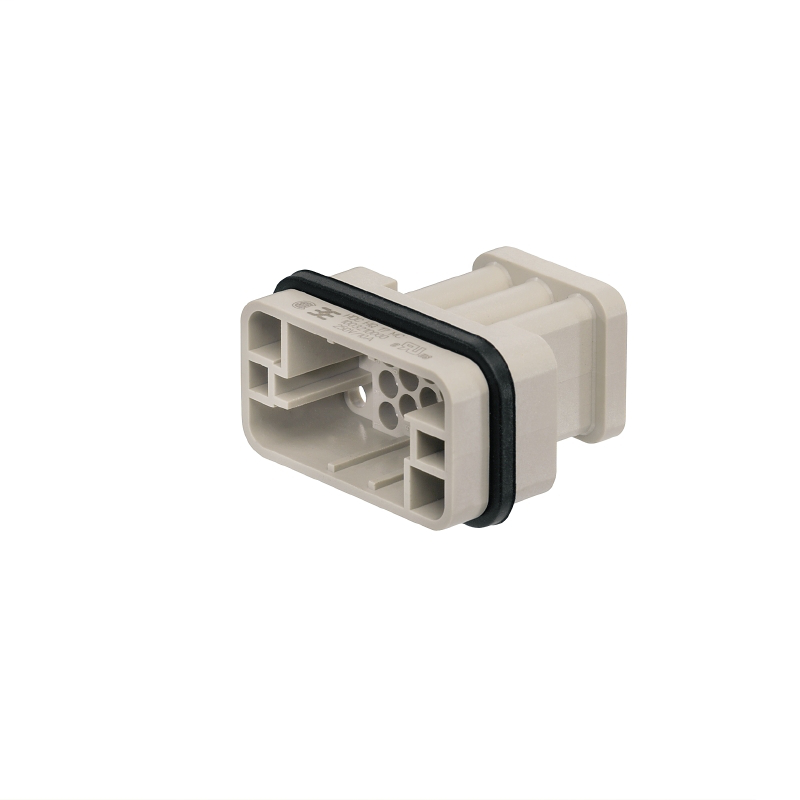

Weidmuller 1003210000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HDC insert, Pin, 250 V, 10 A, Number of poles: 17, Crimp connection, Size: HQHDC HQ 17 MC
Weidmuller 1003210000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-02-05
- eClass 9.0
- 27-44-02-05
- eClass 9.1
- 27-44-02-05
- ETIM 6.0
- EC000438
- ETIM 7.0
- EC000438
- UNSPSC
- 30-21-18-01
Connection Data
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.14 mm²
- Stripping length
- 8 mm
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
Connection Data Pe
- Connection type PE
- Crimp connection
- Rated cross-section
- 2.5 mm²
- Stripping length PE connection
- 8 mm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross section, AWG (PE), max.
- AWG 14
- Wire cross section, AWG (PE), min.
- AWG 26
Design
- Product family
- HDC insert
- Product type
- Insert
- Type
- Pin
- Type of connection
- Crimp connection
Dimensions
- Height of plug
- 38.7 mm
- Total length base
- 41.6 mm
Dimensions And Weights
- Depth
- 41.6 mm
- Depth (inches)
- 1.638 inch
- Height
- 38.7 mm
- Height (inches)
- 1.524 inch
- Net weight
- 17 g
- Width
- 22.4 mm
- Width (inches)
- 0.882 inch
Environmental Product Compliance
- REACH SVHC
- DIBP 84-69-5
General Data
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- Insulating material group
- IIIa
- Insulation strength
- 1010 Ω
- Number of poles
- 17
- Plugging cycles, gold
- ≥ 500
- Plugging cycles, silver
- ≥ 500
- Pollution severity
- 2
- Rated current (DIN EN 61984)
- 10 A
- Rated impulse voltage (DIN EN 61984)
- 4 kV
- Rated voltage according to UL/CSA
- 600 V AC/DC
- Rated voltage (DIN EN 61984)
- 250 V
- Series
- HQ
- Size
- HQ
- Type
- Pin
- UL 94 flammability rating
- V-0
- Volume resistance
- ≤ 4mΩ
General Descriptions
- Number of poles
- 17
- Size
- HQ
Material
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- UL 94 flammability rating
- V-0
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.14 mm²
- Size
- HQ
- Stripping length, rated connection
- 8 mm
- Type of connection
- Crimp connection
- Volume resistance
- ≤ 4mΩ
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
