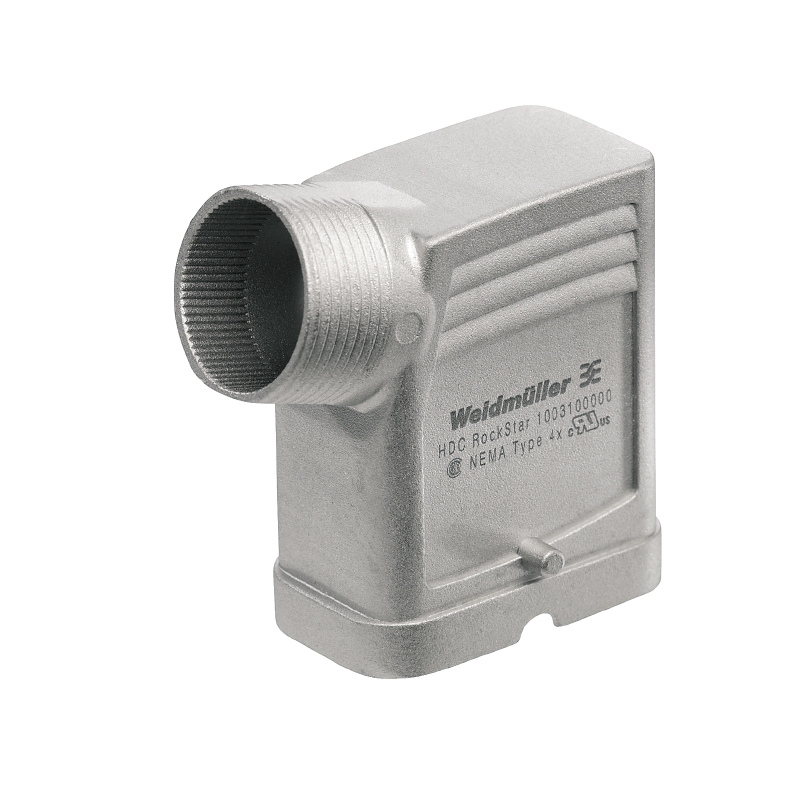

Weidmuller 1003100000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HDC enclosures, Size: HQ, Protection degree: IP65, Cable entry from side, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 21HDC HQM TSLU 1PG21
Weidmuller 1003100000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
- UNSPSC
- 30-21-18-01
Design
- Cable entry
- w. threading
- Product family
- HDC enclosures
- Product type
- Enclosures
- Type
- Plug
Dimensions
- Cable entry
- w. threading
- Height of housing B
- 60.5 mm
- Total length housing
- 50 mm
- Width housing C
- 29 mm
Dimensions And Weights
- Depth
- 50 mm
- Depth (inches)
- 1.969 inch
- Height
- 60.5 mm
- Height (inches)
- 2.382 inch
- Net weight
- 168 g
- Width
- 35 mm
- Width (inches)
- 1.378 inch
General Data
- EMC housings
- Yes
- Housing main material
- Zinc diecast
- Protection degree
- IP65
- Series
- HQ
- Surface finish
- nickel-plated
General Descriptions
- Protection degree
- IP65
- Size
- HQ
- Size of cable entries
- PG 21
Material
- Colour
- Silver grey
Product Information
- Product information
- The HQ metal housings have an internal plastic insert which ensures that the electrical conductor is not directly connected to the metal housing. The housing is therefore insulated.
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Cable entry
- w. threading
- Clamp version
- Side-locking clamp
- Design
- Standard
- Design of housing
- Cable entry from side, Plug housing
- Design of locking system
- Side-locking clamp on lower side
- External thread
- PG 21
- Number of cable entry on top
- 0
- Number of cable entry sideways
- 1
- Size
- HQ
- Size of cable entries
- PG 21
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- upper part
- Type
- Plug
