Weidmuller 1003060000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

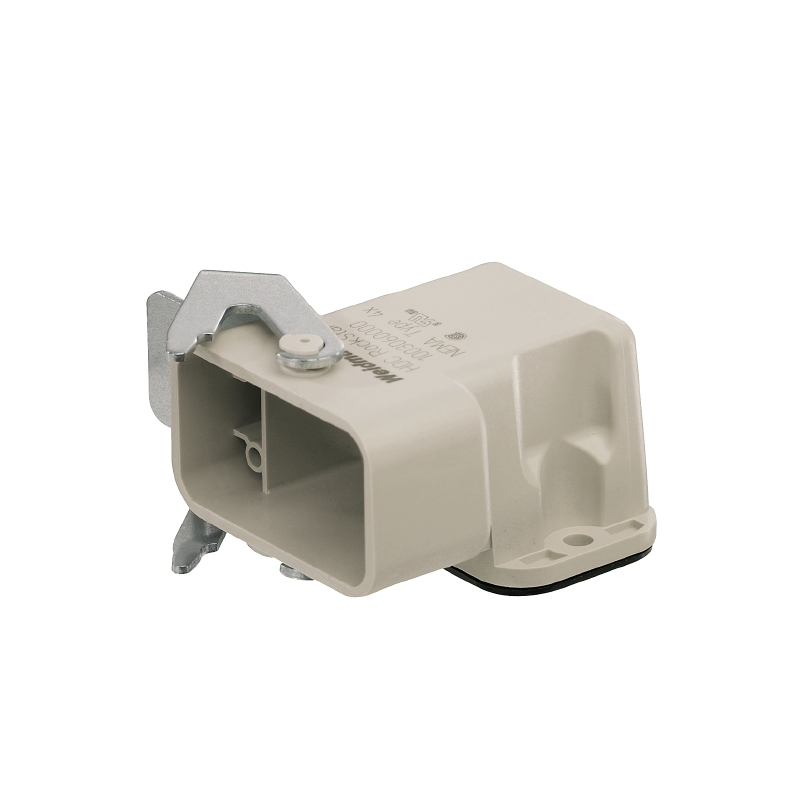

HDC enclosures, Size: HQ, Protection degree: IP65, Open base, Side-locking clamp on lower side, StandardHDC HQP AWLU
Weidmuller 1003060000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
- UNSPSC
- 30-21-18-01
Design
- Cable entry
- angled
- Product family
- HDC enclosures
- Product type
- Enclosures
- Type
- Bulkhead (feed-through)
Dimensions
- Cable entry
- angled
- Height of base B1
- 3.5 mm
- Height of housing B
- 54.5 mm
- Hole pitch length A2
- 38 mm
- Total length housing
- 45.9 mm
- Width base C1
- 46.5 mm
- Width housing C
- 33 mm
Dimensions And Weights
- Depth
- 67.1 mm
- Depth (inches)
- 2.642 inch
- Height
- 75.6 mm
- Height (inches)
- 2.976 inch
- Mounting dimension - width
- 38 mm
- Net weight
- 40 g
- Width
- 37 mm
- Width (inches)
- 1.457 inch
Environmental Product Compliance
- REACH SVHC
- DIBP 84-69-5
General Data
- EMC housings
- No
- Housing main material
- Plastic
- Material of locking element
- Stainless steel, rust-proof
- Protection degree
- IP65
- Series
- HQ
- UL 94 flammability rating
- V-0
General Descriptions
- Protection degree
- IP65
- Size
- HQ
Material
- Colour
- beige
- UL 94 flammability rating
- V-0
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Cable entry
- angled
- Clamp version
- Side-locking clamp
- Design
- Standard
- Design of housing
- Open base
- Design of locking system
- Side-locking clamp on lower side
- Sealing
- NBR
- Size
- HQ
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- lower part
- Type
- Bulkhead (feed-through)
