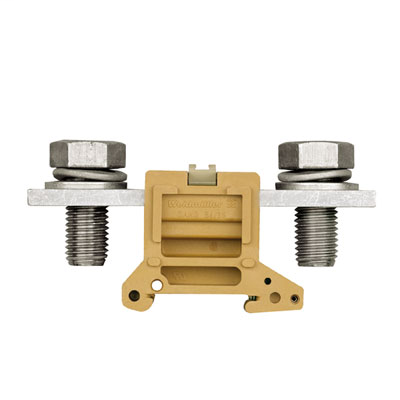

Weidmuller 0638120000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAK Series, Feed-through terminal, Rated cross-section: 240 mm², Screw connection, medium yellow, Direct mountingSAKG 54/35 II
Weidmuller 0638120000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Direct mounting
- Number of similar terminals
- 1
- Open sides
- Open
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, CSA, EAC, GERMLLOYD, MARITREG, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 240 mm²
- Clamping range, min.
- 10 mm²
- Clamping screw
- M 16
- Connection direction
- on side
- Number of connections
- 1
- Tightening torque, max.
- 60 Nm
- Tightening torque, min.
- 25 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- kcmil 500
- Wire connection cross section AWG, min.
- kcmil 300
Csa Rating Data
- Certificate No. (CSA)
- 12400-199
- Current size C (CSA)
- 600 A
- Voltage size C (CSA)
- 600 V
- Wire cross section max. (CSA)
- 500 kcmil
- Wire cross section min. (CSA)
- 300 kcmil
Dimensions And Weights
- Depth
- 60.5 mm
- Depth (inches)
- 2.382 inch
- Height
- 122 mm
- Height (inches)
- 4.803 inch
- Net weight
- 587.6 g
- Width
- 54 mm
- Width (inches)
- 2.126 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- medium yellow
- Material
- KrG
- UL 94 flammability rating
- V-0, 5VA
Rating Data
- Current at maximum wires
- 415 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 13.28 W
- Rated cross-section
- 240 mm²
- Rated current
- 415 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 0.08 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- Rail
- TS 35
- Version
- Stud terminal
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 500 kcmil
- Conductor size Factory wiring min. (UR)
- 300 kcmil
- Conductor size Field wiring max. (UR)
- 500 kcmil
- Conductor size Field wiring min. (UR)
- 300 kcmil
- Current size C (UR)
- 380 A
- Voltage size C (UR)
- 600 V
