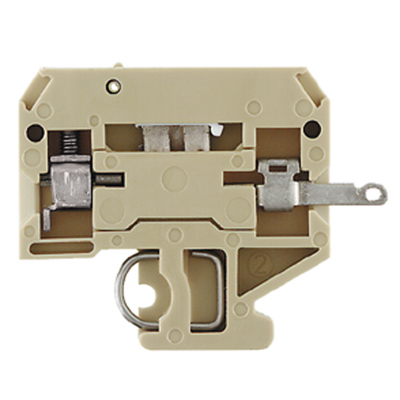

Weidmuller 0518160000

Additional Technical Data

• Explosion-tested version
  • No
• Installation advice
  • Direct mounting
• Number of similar terminals
  • 1
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE
  • EAC
  • MARITREG
• ROHS
  • Conform

Classifications

• eClass 5.1
  • 27-14-11-26
• eClass 6.2
  • 27-14-11-26
• eClass 7.1
  • 27-14-11-26
• eClass 8.1
  • 27-14-11-26
• eClass 9.0
  • 27-14-11-26
• eClass 9.1
  • 27-14-11-26
• ETIM 3.0
  • EC000902
• ETIM 4.0
  • EC000902
• ETIM 5.0
  • EC000902
• ETIM 6.0
  • EC000902
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, rated connection, max.
  • 4 mm²
• Clamping range, rated connection, min.
  • 0.5 mm²
• Clamping screw
  • M 3
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • A3
• Number of connections
  • 1
• Stripping length
  • 8 mm
• Tightening torque, max.
  • 1 Nm
• Tightening torque, min.
  • 0.5 Nm
• Torque level with DMS electric screwdriver
  • 1
• Twin wire-end ferrules, max.
  • 1.5 mm²
• Twin wire-end ferrules, min.
  • 0.5 mm²
• Type of connection
  • Solder connection
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
  • 2.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
  • 0.5 mm²
• Wire connection cross section, solid core max. rated connection
  • 4 mm²
• Wire connection cross section, solid core, min. rated connection
  • 0.5 mm²
• Wire connection cross section, stranded, rated connection, max.
  • 4 mm²
• Wire connection cross section, stranded, rated connection, min.
  • 1.5 mm²

Dimensions And Weights

• Depth
  • 40.5 mm
• Depth (inches)
  • 1.594 inch
• Height
  • 50 mm
• Height (inches)
  • 1.969 inch
• Net weight
  • 9.59 g
• Width
  • 6.5 mm
• Width (inches)
  • 0.256 inch

General Ordering Data

• GTIN (EAN)
  • 4008190002633
• Order No.
  • 0518160000
• Qty.
  • 100 pc(s).
• Type
  • SAKR LS 2STB
• Version
  • SAK Series, Test-disconnect terminal, Rated cross-section: 4 mm², Solder connection, Beige, Direct mounting

Material Data

• Colour
  • beige / yellow
• Material
  • PA 66
• UL 94 flammability rating
  • V-2

Other Connections

• Pin on side
  • left
• Rated cross-section solder connection
  • 1.5 mm²

Product Information

• Descriptive text accessories
  • QB 25 blank, refer to the Accessories section. Note that max. conductor connection with QB is 2.5 mm². Twin wire-end ferrules ZH 0.5 to ZH 1.5 can be used.
• Descriptive text technical data
  • When using disconnect terminals with sockets, the tightening torque is 0.5 - 0.7 Nm.

Rating Data

• Current at maximum wires
  • 10 A
• Pollution severity
  • 3
• Rated cross-section
  • 4 mm²
• Rated current
  • 10 A
• Rated impulse withstand voltage
  • 4 kV
• Rated voltage
  • 250 V
• Standards
  • IEC 60068-2-20, In accordance with IEC 60947-7-1
• Volume resistance according to IEC 60947-7-x
  • 1 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• Mounting rail
  • TS 32
• N-function
  • No
• No. of clamping points per level
  • 1
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Version
  • Screw connection, Solder connection, Disconnection element, with sockets, One end without connector

Temperatures

• Continuous operating temp., max.
  • 100 °C
• Continuous operating temp., min.
  • -50 °C
