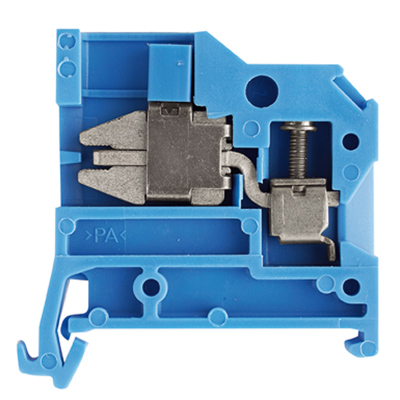

Weidmuller 0471880000

Additional Technical Data

• Explosion-tested version
  • No
• Installation advice
  • Direct mounting
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE, CSA, EAC, UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-20
• eClass 9.0
  • 27-14-11-20
• eClass 9.1
  • 27-14-11-20
• ETIM 6.0
  • EC000897
• ETIM 7.0
  • EC000897
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Additional Connection)

• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
  • 10 mm²
• Connection type, additional connection
  • Busbar connection

Conductors For Clamping (Rated Connection)

• Blade size
  • 1.0 x 5.5 mm
• Clamping range, max.
  • 16 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping screw
  • M 4
• Connection cross-section, stranded, max.
  • 10 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • B6
• Number of connections
  • 2
• Stripping length
  • 12 mm
• Tightening torque, max.
  • 1.6 Nm
• Tightening torque, min.
  • 1.2 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 8
• Wire connection cross section AWG, min.
  • AWG 14
• Wire connection cross section, finely stranded, max.
  • 10 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 10 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 10 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire connection cross-section, solid core, max.
  • 16 mm²
• Wire connection cross-section, solid core, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 12400-160
• Current size B (CSA)
  • 50 A
• Current size C (CSA)
  • 50 A
• Current size D (CSA)
  • 10 A
• Voltage size B (CSA)
  • 300 V
• Voltage size C (CSA)
  • 300 V
• Voltage size D (CSA)
  • 300 V
• Wire cross section max. (CSA)
  • 8 AWG
• Wire cross section min. (CSA)
  • 14 AWG

Dimensions

• TS 35 offset
  • 20 mm

Dimensions And Weights

• Depth
  • 44 mm
• Depth (inches)
  • 1.732 inch
• Height
  • 45 mm
• Height (inches)
  • 1.772 inch
• Net weight
  • 19.18 g
• Width
  • 10 mm
• Width (inches)
  • 0.394 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Material Data

• Colour
  • blue
• Material
  • PA 66
• UL 94 flammability rating
  • V-2

Pe Rating Data

• PEN function
  • No

Rating Data

• Current at maximum wires
  • 57 A
• Pollution severity
  • 3
• Power loss in accordance with IEC 60947-7-x
  • 1.82 W
• Rated cross-section
  • 10 mm²
• Rated current
  • 57 A
• Rated impulse withstand voltage
  • 6 kV
• Rated voltage
  • 400 V
• Standards
  • In accordance with IEC 60947-7-1
• Volume resistance according to IEC 60947-7-x
  • 0.56 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• N-function
  • Yes
• Number of clamping points per level
  • 1
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Rail
  • TS 35

Temperatures

• Continuous operating temp., max.
  • 100 °C
• Continuous operating temp., min.
  • -50 °C
• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (UR)
  • E60693
• Conductor size Factory wiring max. (UR)
  • 8 AWG
• Conductor size Factory wiring min. (UR)
  • 14 AWG
• Conductor size Field wiring max. (UR)
  • 8 AWG
• Conductor size Field wiring min. (UR)
  • 14 AWG
• Current size C (UR)
  • 50 A
• Voltage size C (UR)
  • 300 V
