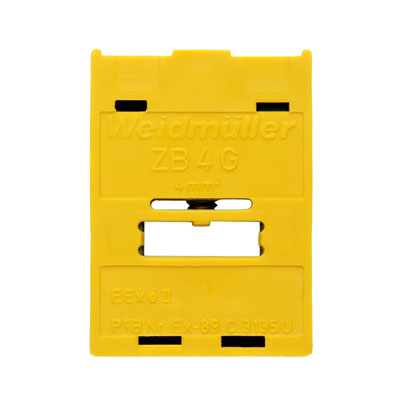

Weidmuller 0322160000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, PA, Green/yellow, Feed-through (bushing)ZB 4G GN/GE
Weidmuller 0322160000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Feed-through (bushing)
- Type of mounting
- when screwed in
Approvals
- Approvals
- CURUSEX, DEMKOATEX, IECEXULD, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-92
- eClass 9.0
- 27-14-11-92
- eClass 9.1
- 27-14-11-92
- ETIM 6.0
- EC002848
- ETIM 7.0
- EC002848
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Clamping screw
- M 3
- Stripping length
- 16 mm
- Type of connection
- Clamping yoke
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 27 mm
- Depth (inches)
- 1.063 inch
- Height
- 19.5 mm
- Height (inches)
- 0.768 inch
- Net weight
- 3 g
- Width
- 7.4 mm
- Width (inches)
- 0.291 inch
Material Data
- Colour
- silver
- Insulating material
- PA
- Material
- Steel
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO03ATEX136028U
- Certificate No. (IECEX)
- IECEXULD13.0005U
- Ex 2014/34/EU label
- II 2 G D
- Marking EN 60079-7
- Ex eb II C Gb
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Safety notice
- Installation instructions:The potential equalisation (PE) rail modules are suitable for use in housings in atmospheres with flammable gases and dust. For use in areas with flammable gases, these housings must meet the requirements of EN 60079-0 and EN 60079-7. For use in areas with flammable dust, these housings must meet the requirements of EN 60079-0 and EN 60079-31.When combined with other terminal block ranges and sizes, and when other accessories are used, you must comply with the clearance and creepage distances given.Regarding accessory use, the manufacturer's instructions must be followed. List of restrictions: The PE rail modules are considered one component, with Ex marking when used with the busbar holders of type SH and WEW. When used independently, the above named components are not covered by this certificate.
- Wire cross section max. (ATEX)
- 4 mm²
- Wire cross section max. (IECEX)
- 4 mm²
System Specifications
- Version
- for busbar 10 x 3 mm, For subsequently slewing-in
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 12 AWG
- Conductor size Factory wiring min. (UR)
- 20 AWG
- Conductor size Field wiring max. (UR)
- 12 AWG
- Conductor size Field wiring min. (UR)
- 20 AWG
