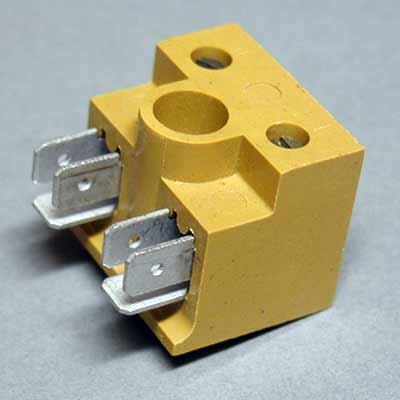

Weidmuller 0213420000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 0213420000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Direct mounting
- Type of mounting
- Direct mounting
Approvals
- Approvals
- CSA
- CE
- ROHS
- Conform
Classifications
- eClass 5.1
- 27-14-11-06
- eClass 6.2
- 27-14-11-06
- eClass 7.1
- 27-14-11-06
- eClass 8.1
- 27-14-11-06
- eClass 9.0
- 27-14-11-06
- eClass 9.1
- 27-14-11-06
- ETIM 3.0
- EC001284
- ETIM 4.0
- EC001284
- ETIM 5.0
- EC001284
- ETIM 6.0
- EC001284
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- 4.0 x 0.8 mm
- Clamping range, rated connection, max.
- 4 mm²
- Clamping range, rated connection, min.
- 0.33 mm²
- Clamping screw
- M 3.5
- Connection direction
- on side
- Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A3
- Number of connections
- 1
- Stripping length
- 8 mm
- Tightening torque, max.
- 1.6 Nm
- Tightening torque, min.
- 0.8 Nm
- Torque level with DMS electric screwdriver
- 3
- Type of connection
- Flat-blade connection
- Wire connection cross section AWG, max.
- AWG 22
- Wire connection cross section AWG, min.
- AWG 22
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
- 4 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
- 4 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
- 0.5 mm²
- Wire connection cross section, solid core max. rated connection
- 4 mm²
- Wire connection cross section, solid core, min. rated connection
- 0.5 mm²
- Wire connection cross section, stranded, rated connection, max.
- 1.5 mm²
- Wire connection cross section, stranded, rated connection, min.
- 4 mm²
Csa Rating Data
- Certificate No. (CSA)
- 12400-233
- Current size B (CSA)
- 10 A
- Current size D (CSA)
- 10 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 300 V
- Wire cross section max. (CSA)
- 10 AWG
- Wire cross section min. (CSA)
- 22 AWG
Dimensions And Weights
- Depth
- 24 mm
- Depth (inches)
- 0.945 inch
- Height
- 2,850 mm
- Height (inches)
- 112.204 inch
- Net weight
- 21.63 g
- Width
- 40 mm
- Width (inches)
- 1.575 inch
General Ordering Data
- Alternative product
- 0624720000
- Available until
- 2018-01-31
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4008190035068
- Order No.
- 0213420000
- Qty.
- 100 pc(s).
- Type
- SLS 2/2 6.3
- Version
- Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 4 mm², Flat-blade connection, Direct mounting
Material Data
- Colour
- Medium Yellow
- Material
- KrG
- UL 94 flammability rating
- 5VA, V-0
Rating Data
- Pollution severity
- 3
- Rated cross-section
- 4 mm²
- Rated current
- 16 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 400 V
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- Mounting rail
- Mounting plate
- Version
- For the mounting rails
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
