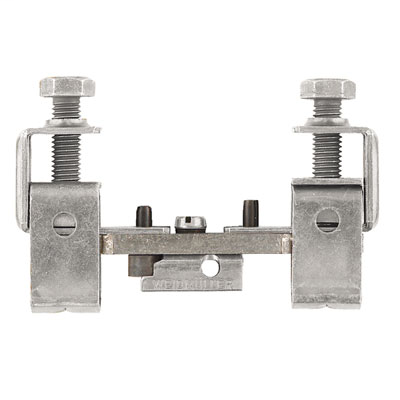

Weidmuller 0213200000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAK Series, PE terminal, Rated cross-section: 70 mm², Screw connectionSAKE 70/32
Weidmuller 0213200000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Open sides
- closed
- Type of mounting
- Clamped
Approvals
- Approvals
- CE, CSA, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-41
- eClass 9.0
- 27-14-11-41
- eClass 9.1
- 27-14-11-41
- ETIM 6.0
- EC000901
- ETIM 7.0
- EC000901
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 70 mm²
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 70 mm²
- Clamping range, min.
- 10 mm²
- Clamping screw
- M 8
- Connection cross-section, stranded, max.
- 70 mm²
- Connection cross-section, stranded, min.
- 10 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- B10
- Number of connections
- 1
- Stripping length
- 25 mm
- Tightening torque, max.
- 12 Nm
- Tightening torque, min.
- 6 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 2/0
- Wire connection cross section AWG, min.
- AWG 1
- Wire connection cross section, finely stranded, max.
- 70 mm²
- Wire connection cross-section, finely stranded, min.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 70 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 10 mm²
- Wire connection cross-section, solid core, max.
- 16 mm²
- Wire connection cross-section, solid core, min.
- 10 mm²
Csa Rating Data
- Certificate No. (CSA)
- 12400-246
- Wire cross section max. (CSA)
- 00 AWG
- Wire cross section min. (CSA)
- 1 AWG
Dimensions
- TS 35 offset
- 71 mm
Dimensions And Weights
- Depth
- 59.5 mm
- Depth (inches)
- 2.343 inch
- Height
- 94 mm
- Height (inches)
- 3.701 inch
- Net weight
- 201.8 g
- Width
- 18 mm
- Width (inches)
- 0.709 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- yellow, green
Pe Rating Data
- Centre screw on PE terminals
- M 5
- PEN function
- Yes
- Rated short-time current
- 8400 A (70 mm²)
- Tightening torque range for fixing screw
- 2.0...4.0 Nm
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 6.14 W
- Rated cross-section
- 70 mm²
- Standards
- IEC 60947-7-2
- Volume resistance according to IEC 60947-7-x
- 0.17 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- Yes
- PE function
- Yes
- PEN function
- Yes
- Rail
- TS 32
- Version
- Screw connection, With PE connection
Temperatures
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
