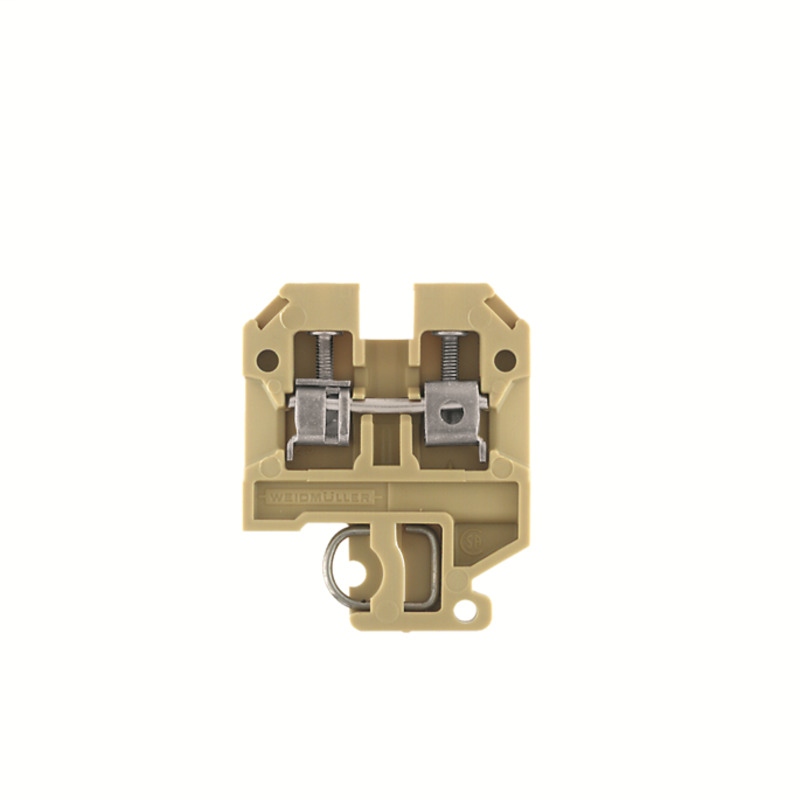

Weidmuller 0189860000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAK Series, Thermocouple terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mountingSAK 2.5/TC CO
Weidmuller 0189860000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Direct mounting
- Number of similar terminals
- 1
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-42
- eClass 9.0
- 27-14-11-42
- eClass 9.1
- 27-14-11-42
- ETIM 6.0
- EC000904
- ETIM 7.0
- EC000904
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 4 mm²
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 2.5 mm²
- Clamping screw
- M 2.5
- Connection direction
- on side
- Number of connections
- 2
- Stripping length
- 10 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.4 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, solid core, max.
- 2.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 46.5 mm
- Depth (inches)
- 1.831 inch
- Height
- 36.5 mm
- Height (inches)
- 1.437 inch
- Net weight
- 8.59 g
- Width
- 6 mm
- Width (inches)
- 0.236 inch
Material Data
- Colour
- beige / yellow
- Material
- PA 66
- UL 94 flammability rating
- V-2
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Rated cross-section
- 2.5 mm²
- Standards
- IEC 60584, IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 32
- Version
- Screw connection, Thermocouple, One end without connector
Temperatures
- Continuous operating temp., max.
- 100 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
