Weidmuller 0185320000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

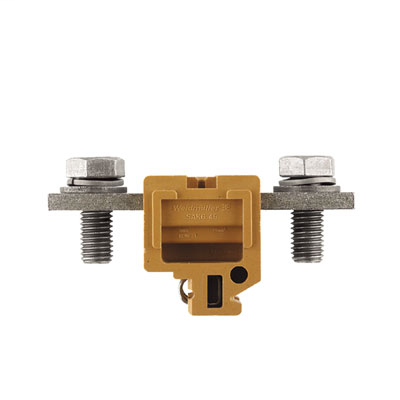

SAK Series, Feed-through terminal, Rated cross-section: 150 mm², Threaded stud connection, medium yellow, Direct mountingSAKG 46 II/GW
Weidmuller 0185320000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Direct mounting
- Number of similar terminals
- 1
- Open sides
- Open
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, CSA, DNV GL, EAC, GERMLLOYD, MARITREG
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Cable lug to DIN 46234
- 10...185 mm²
- Cable lug to DIN 46235
- 25 - 150 mm²
- Clamping range, max.
- 185 mm²
- Clamping range, min.
- 10 mm²
- Clamping screw
- M 12
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 31 Nm
- Tightening torque, min.
- 14 Nm
- Type of connection
- Threaded stud connection
Csa Rating Data
- Certificate No. (CSA)
- 12400-199
- Current size C (CSA)
- 365 A
- Voltage size C (CSA)
- 600 V
- Wire cross section max. (CSA)
- 300 kcmil
Dimensions And Weights
- Depth
- 57 mm
- Depth (inches)
- 2.244 inch
- Height
- 106 mm
- Height (inches)
- 4.173 inch
- Net weight
- 326 g
- Weight
- 342.8 g
- Width
- 46 mm
- Width (inches)
- 1.811 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- medium yellow
- Material
- KrG
- UL 94 flammability rating
- V-0, 5VA
Rating Data
- Current at maximum wires
- 353 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 9.89 W
- Rated cross-section
- 150 mm²
- Rated current
- 309 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 0.1 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 32
- Version
- Stud terminal
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
