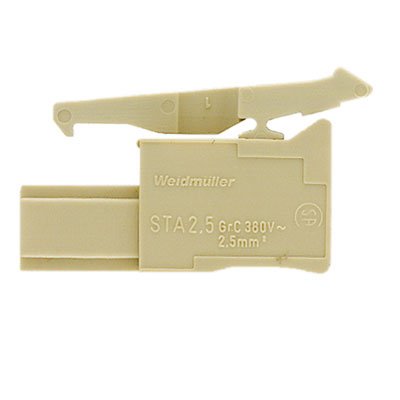

Weidmuller 0165860000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 0165860000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
Approvals
- Approvals
- UR
- CSA
- EAC
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 6.2
- 27-14-92-14
- eClass 7.1
- 27-14-92-14
- eClass 8.1
- 27-14-92-14
- eClass 9.0
- 27-14-11-92
- eClass 9.1
- 27-14-11-48
- ETIM 3.0
- EC002255
- ETIM 4.0
- EC002255
- ETIM 5.0
- EC002255
- ETIM 6.0
- EC002555
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- Tightening torque, max.
- 0.3 Nm
- Tightening torque, min.
- 0.3 Nm
- Type of connection
- Screw connection
Csa Rating Data
- Certificate No. (CSA)
- 12400-145
- Current size C (CSA)
- 10 A
- Voltage size C (CSA)
- 300 V
- Wire cross section max. (CSA)
- 14 AWG
- Wire cross section min. (CSA)
- 22 AWG
Dimensions And Weights
- Depth
- 34 mm
- Depth (inches)
- 1.339 inch
- Height
- 6 mm
- Height (inches)
- 0.236 inch
- Net weight
- 6.53 g
- Width
- 12 mm
- Width (inches)
- 0.472 inch
General Ordering Data
- GTIN (EAN)
- 4008190129491
- Order No.
- 0165860000
- Qty.
- 100 pc(s).
- Type
- STA 2.5/2
- Version
- SAK Series, Test adapter
Material Data
- Colour
- Beige
- Material
- PA 66
- UL 94 flammability rating
- V-2
Product Information
- Descriptive text technical data
- Rated current 6 A
System Specifications
- Mounting rail
- none
- Version
- For the terminals
Temperatures
- Continuous operating temp., max.
- 100 °C
- Continuous operating temp., min.
- -50 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 12 AWG
- Conductor size Factory wiring min. (UR)
- 22 AWG
- Conductor size Field wiring max. (UR)
- 12 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Current size B (UR)
- 10 A
- Current size D (UR)
- 5 A
- Voltage size B (UR)
- 300 V
- Voltage size D (UR)
- 600 V
