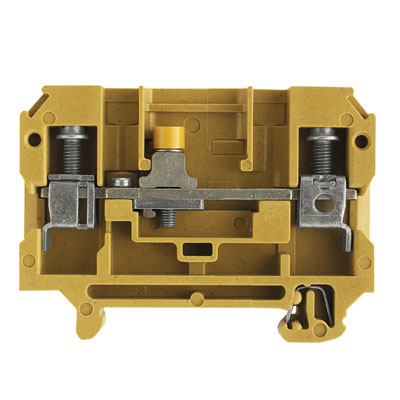

Weidmuller 0124620000

Additional Technical Data

• Explosion-tested version
  • No
• Installation advice
  • Direct mounting
• Number of similar terminals
  • 1
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE
  • UR
  • MARITREG
  • EAC
  • CSA
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 5.1
  • 27-14-11-26
• eClass 6.2
  • 27-14-11-26
• eClass 7.1
  • 27-14-11-26
• eClass 8.1
  • 27-14-11-26
• eClass 9.0
  • 27-14-11-26
• eClass 9.1
  • 27-14-11-26
• ETIM 3.0
  • EC000902
• ETIM 4.0
  • EC000902
• ETIM 5.0
  • EC000902
• ETIM 6.0
  • EC000902
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Additional Connection)

• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
  • 6 mm²

Conductors For Clamping (Rated Connection)

• Blade size
  • 4.0 x 0.8 mm
• Clamping range, rated connection, max.
  • 10 mm²
• Clamping range, rated connection, min.
  • 0.13 mm²
• Clamping screw
  • M 3.5
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • A5
• Number of connections
  • 2
• Stripping length
  • 12 mm
• Torque level with DMS electric screwdriver
  • 3
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 8
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 6 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
  • 6 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
  • 0.5 mm²
• Wire connection cross section, solid core max. rated connection
  • 10 mm²
• Wire connection cross section, solid core, min. rated connection
  • 0.5 mm²
• Wire connection cross section, stranded, rated connection, max.
  • 10 mm²
• Wire connection cross section, stranded, rated connection, min.
  • 1.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 12400-198
• Current size C (CSA)
  • 25 A
• Voltage size C (CSA)
  • 300 V
• Wire cross section max. (CSA)
  • 8 AWG
• Wire cross section min. (CSA)
  • 26 AWG

Dimensions And Weights

• Depth
  • 52.5 mm
• Depth (inches)
  • 2.067 inch
• Height
  • 65 mm
• Height (inches)
  • 2.559 inch
• Net weight
  • 28.02 g
• Width
  • 8 mm
• Width (inches)
  • 0.315 inch

Disconnect Terminals

• Cross-disconnect
  • sliding
• Integral test socket
  • No
• Slitting
  • Miscellaneous

General Ordering Data

• Available until
  • 2017-11-30
• Delivery status
  • This article will no longer be available in the future.
• GTIN (EAN)
  • 4008190093785
• Order No.
  • 0124620000
• Qty.
  • 50 pc(s).
• Type
  • SAKT 1/35/QT2
• Version
  • SAK Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connection, Medium Yellow, Direct mounting

Material Data

• Colour
  • Medium Yellow
• Material
  • KrG
• UL 94 flammability rating
  • V-0, 5VA

Product Information

• Descriptive text accessories
  • To safe the test sockets use the SDIZ-blade (see chapter Tools) or bits with pilots!
• Descriptive text technical data
  • 10  mm² stranded and AWG 8/7 connections are to be fixed with 1.6 Nm tightening torque.

Rating Data

• Current at maximum wires
  • 57 A
• Pollution severity
  • 3
• Rated cross-section
  • 6 mm²
• Rated current
  • 41 A
• Rated impulse withstand voltage
  • 6 kV
• Rated voltage
  • 400 V
• Standards
  • IEC 60947-7-1
• Volume resistance according to IEC 60947-7-x
  • 0.78 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• Mounting rail
  • TS 35
• N-function
  • No
• No. of clamping points per level
  • 2
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Version
  • Screw connection, Special terminal longitudinal isolator, for screwable cross-connection, closed

Temperatures

• Continuous operating temp., max.
  • 130 °C
• Continuous operating temp., min.
  • -60 °C

Ul Rating Data

• Certificate No. (UR)
  • E60693
• Conductor size Factory wiring max. (UR)
  • 8 AWG
• Conductor size Factory wiring min. (UR)
  • 26 AWG
• Conductor size Field wiring max. (UR)
  • 8 AWG
• Conductor size Field wiring min. (UR)
  • 22 AWG
• Current size C (UR)
  • 25 A
• Voltage size C (UR)
  • 300 V
