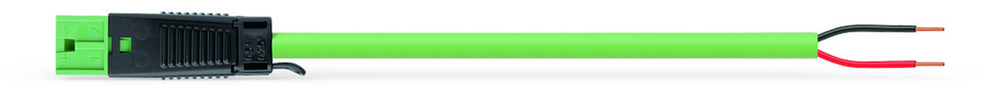

WAGO 894-8392/273-606

Commercial Data

• Country of origin
  • PL
• Customs tariff number
  • 85444290900
• GTIN
  • 4066966254389

Connection 1

• Conductor diameter
  • 0.8 mm
• Connection type
  • Plug - free end
• Pole number
  • 2
• Sheathed cable diameter
  • 5 … 7 mm
• Strip length
  • 9 mm / 0.35 inches
• Strip length (outer insulation)
  • 23 mm

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 3 mΩ contact resistance

Material Data

• Color
  • Green
• Connector color
  • Green
• Contact material
  • Copper alloy; surface-treated
• Contact plating
  • Tin
• Copper weight of the pipe
  • 0.021 kg/m
• Fire class per EN 50575
  • Cca
• Fire load
  • 0.171 MJ
• Flammability class per UL94
  • V0
• Halogen-free
  • Yes
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Printing color of sheathed cable
  • Black
• Rubber cable
  • No
• Sheathed cable color
  • Green
• Sheath material
  • Halogen-free
• Silicon-free
  • Yes
• Strain relief color
  • Black
• Weight
  • 239.310 g

Mechanical Data

• Cable type
  • Y-H(St)Hh 1x2x0.8
• Coding
  • E
• Connection type
  • Plug - free end
• Marking
  • 1+ 2-
• Mating force of a plug-in connection
  • Approx. 10 … 15 N
• Number of mating cycles
  • 200
• Potential marking
  • 1+ 2-
• Protection type
  • IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)
• Retention force of a plug-in connection
  • When locked: > 80N
• Technology
  • KNX
• Type of pre-assembled cable
  • Connecting cable
• Unmating force of a plug-in connection
  • Unlocked: approx. 15 … 20 N
• Variable coding
  • No

Notes

• Note
  • Cables with a different fire class can be found in the eShop.

Physical Data

• Height
  • 11.1 mm / 0.437 inches
• Total length
  • 6 m
• Width
  • 14.1 mm / 0.555 inches

Plug-In Connection

• Locking of plug-in connection
  • null
• Mismating protection
  • Yes
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 50 V
• Rated current
  • 3 A
• Rated impulse voltage (III/3)
  • 0.8 kV
• Ratings per
  • IEC/EN 60664-1

Specifications

• Product Group Code
  • 0020
