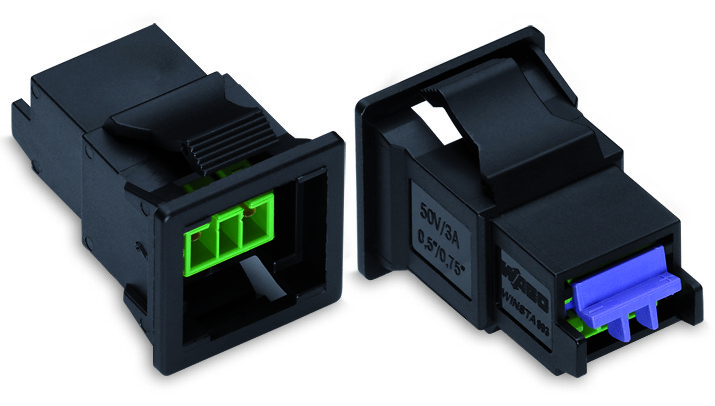

WAGO 893-2002

Commercial Data

• Country of origin
  • CH
• Customs tariff number
  • 85366990990
• GTIN
  • 4045454420130
• Packaging type
  • Box

Connection 1

• Actuation type
  • Push-in
• Conductor diameter
  • 0.8 mm
• Conductor entry direction to mating direction
  • 0 °
• Connection technology
  • PUSH WIRE®
• Pole number
  • 2
• Strip length
  • 9 mm / 0.35 inches

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 3 mΩ contact resistance

Material Data

• Clamping spring material
  • Chrome-nickel spring steel (CrNi)
• Color
  • Green
• Contact material
  • Copper alloy; surface-treated
• Contact plating
  • Tin
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 3.600 g

Mechanical Data

• Coding
  • E
• Housing sheet thickness
  • 0.5 … 2 mm / 0.02 … 0.079 inches
• Marking
  • 1+ 2-
• Mating force of a plug-in connection
  • Approx. 10 … 15 N
• Mounting type
  • Snap-in flange
• Number of mating cycles
  • 200
• Potential marking
  • 1+ 2-
• Protection type
  • IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)
• Retention force of a plug-in connection
  • Locked: > 80 N
• Technology
  • KNX
• Unmating force of a plug-in connection
  • Unlocked: approx. 15 … 20 N
• Variable coding
  • No

Physical Data

• Depth
  • 29.5 mm / 1.161 inches
• Height
  • 19.6 mm / 0.772 inches
• Width
  • 19.6 mm / 0.772 inches

Plug-In Connection

• Connector (connection type)
  • For conductor
• Contact type (pluggable connector)
  • Female connector/socket
• Locking lever
  • No
• Locking of plug-in connection
  • Locking lever
• Mismating protection
  • Yes
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 50 V
• Rated current
  • 3 A
• Rated impulse voltage (III/3)
  • 0.8 kV
• Ratings per
  • IEC/EN 60664-1

Specifications

• Product Group Code
  • 0020
